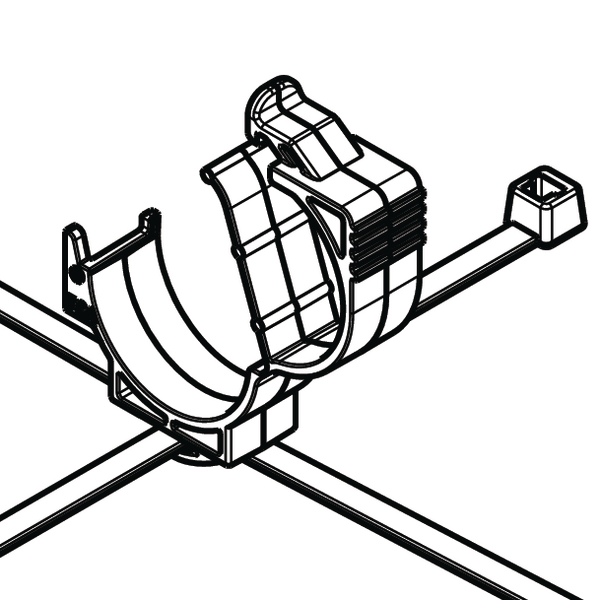

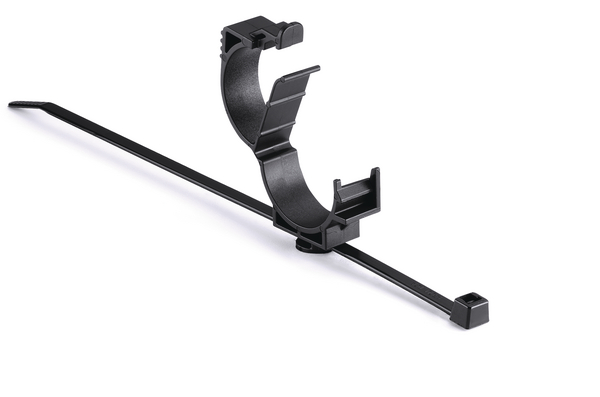

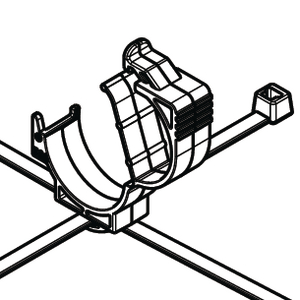

Fixing tie with pipe/tube holder, inside serrated, Ø20.0-25.0mm, black, 1000pcs.
Art.-No. 156-01564 | T50RLOC20-25SET-PA66HS/PA66HIRHSUV-BK |  Details

The 360 degree locking enclosure and cable tie dynamically fit a range of bundle sizes.

    Add to watchlist
    Cable ∅ max 50.0mm
    Cable ∅ min 5.0mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features for multiple routing, removable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Pack Cont. 1000pcs.
    Package Content packed in carton
    PART DESCRIPTION T50RLOC20-25SET-PA66HS/PA66HIRHSUV-BK
    Product Group 2-Piece Fixing Ties with Pipe Clip
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Variant Inside Serrated
    Bundle Diameter max (metric) 25.0mm
    Bundle Diameter Nom. (ND) 20.0 mm - 25.0 mm
    Bundle ∅ 20.0-25.0mm
    Bundle ∅ min. 20.0mm
    Depth (D) 12.0mm
    Height (H) 38.9mm
    Length (L) 37.2mm
    Length (L2) 26.0mm
    Min.Tensile Strength 225N
    Weight/Unit 0.002kg
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026542362
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 2000kg
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 2.77kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 15000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 62.55kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
