Fixing tie for hole (oval), ⌀1.6-50.0mm, black, 2000pcs.
Art.-No. 156-03420 | T50ROSFTOVAL32R-PA66HS/PA66HIRHSUV-BK |

Copied

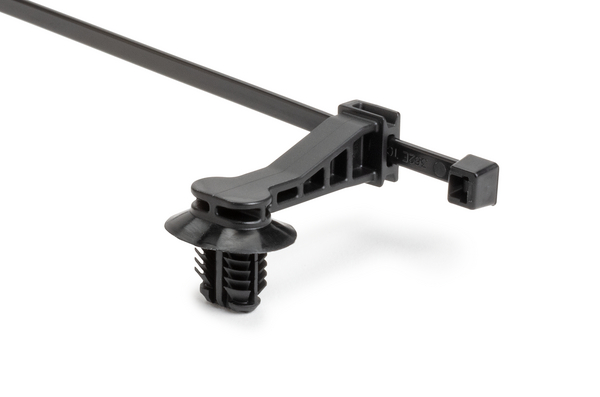

Two piece fixing tie T50ROSFTOVAL-B with fir tree for oval holes.

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • DOP versions for oval holes feature anti-twist protection
    Add to watchlist
    Downloads e-Learning
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Colour Black (BK)
    Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables.
    The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
    Fixation Method Fir Tree for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-resistant (PA66HIRHSW)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50ROSFTOVAL32R-PA66HS/PA66HIRHSUV-BK
    Package Content 2000pcs.
    Package Content packed in carton
    Product Family for oval holes
    Product Group 2-piece fixing ties with fir tree, with disc
    Tie Closure plastic pawl
    Type T50ROSFTOVAL32R
    UV-Stabilised Yes
    Bundle ⌀ 1.6-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 1.6mm
    Cable Tie Head Length (metric) 7.3mm
    Cable Tie Head Width (metric) 7.6mm
    Fixing Hole Shape Oval
    Length (L) 200.0mm
    Offset Length 32.0mm
    Panel Thickness 4.0 - 50.0mm
    Strap Width max. (G) 0.3"
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 4 - 50 mm
    for Panel Thickness min - max 0.2 - 2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026743561
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.34m
    Packaging 3 - Length (m) 0.57m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0738m³
    Packaging 3 - Width (m) 0.381m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
