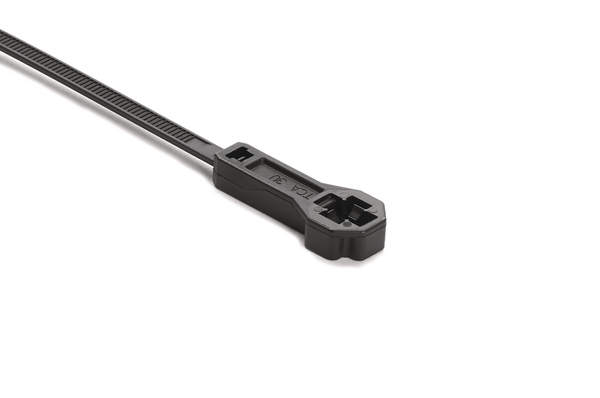

Fixing tie for stud, ⌀2.0-50.0mm, black, 3000pcs.
Art.-No. 157-00335 | T50ROSLPM6SMSO25-PA66HIRHSUV-BK

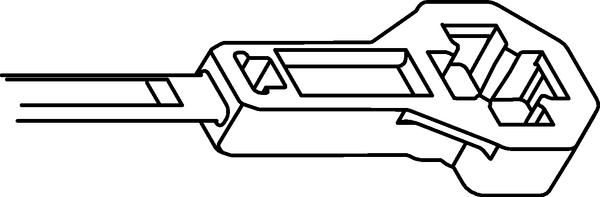

Offset design positions bundles away from obstructions, heat or sources of abrasion.
Low profile head allows mounts to stack, providing more mounting versatility from a single stud.
Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.

Package size

100 pcs.

3000 pcs.

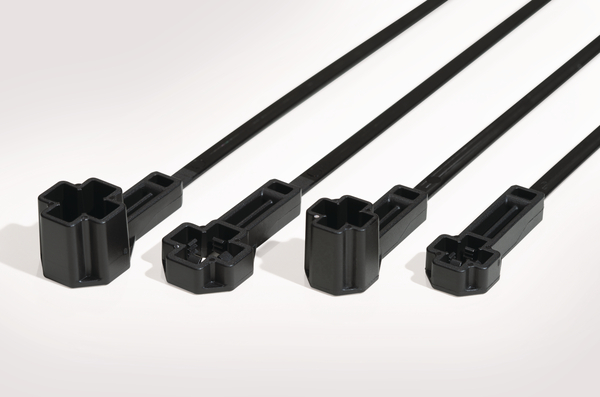

More products in this product group:

Application	Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
Brand Family	OS-Series
Color	Black (BK)
Description	One-piece cable tie with stud mount features an offset design to position bundles away from obstructions, heat or sources of abrasion. It includes a low-profile head, allowing multiple tie mounts to be stacked on a single bolt and providing space savings in tight areas. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
Min. Tensile Strength (imperial)	50lbs
Min. Tensile Strength (metric)	225N
PART DESCRIPTION	T50ROSLPM6SMSO25-PA66HIRHSUV-BK
Packaging Type	pack
Part No.	157-00335
Product family	1-Piece Tie Assemblies
Product family	Products to use on studs
Short Desc.	Offset Low-Profile Stud Mount Tie, 7.5" Tie, 50lb Tensile Strength, PA66HIRHSUV, Black, 3000/pkg
Type	T50ROSLPM6SMSO25
UV Resistant	Yes

Cable Tie Closure	plastic pawl
Fixation Method	Stud Mount
Height (imperial)	0.25"
Height (metric)	6.30mm
Identification Plate Position	none
Length (imperial)	8.8"
Length (metric)	223.52mm
Max. Bundle Diameter (imperial)	1.97"
Max. Bundle Diameter (metric)	50.0mm
Min. Bundle Diameter (imperial)	0.08"
Min. Bundle Diameter (metric)	2.0mm
Mounting Hole Diameter (imperial)	0.24 x 0.04 "
Mounting Hole Diameter (metric)	M6 x 1
Mounting Hole Shape	Round
Offset Length (imperial)	1.0"
Offset Length (metric)	25.5mm
Releasable Closure	No
Stud Diameter (imperial)	0.20 ", 0.24"
Stud Diameter (metric)	5.0 mm, 6.0 mm
Width (imperial)	0.56"
Width (metric)	14.2mm

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen Free	Yes
Material	PA66HIRHSUV
Material	Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No
