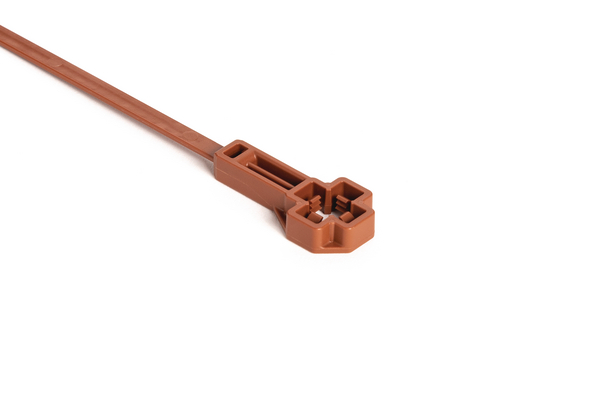

Fixing tie for stud, outside serrated, ⌀2.0-50.0mm, brown, 2000
Art.-No. 157-00361 | T50ROSLPM8SMSO25-PA46-BN |

Copied
Offset design positions bundles away from obstructions, heat or sources of abrasion.
1-Piece Fixing Ties for Weld Studs, cloverleaf design. From left to right: 1. Standoff, 2. standard, 3. low profile head with standoff, 4. low profile head design.
Offset design positions bundles away from obstructions, heat or sources of abrasion.
Offset design positions bundles away from obstructions, heat or sources of abrasion.

    • One-piece fixing ties
    • Outstanding stud retention, keeps bundles secure
    • Offset design versions positioning bundles away from obstructions, heat or sources of abrasion
    • Low Profile head versions allow mounts to stack, providing parallel routing
    Add to watchlist
    Downloads
    Application These fixing ties are coming with outstanding stud retention. With low insertion force and high extraction performance they offer an ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications.
    Colour Brown (BN)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    Min.Tensile Strength 223N
    PART DESCRIPTION T50ROSLPM8SMSO25-PA46-BN
    Package Content 2000
    Package Content packed in pack
    Product Family For cable routing alongside the stud, standoff with low profile head
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROSLPM8SMSO25
    UV-Stabilised No
    Weight/Unit 0.00242kg
    Bundle ⌀ 2.0-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 2.0mm
    Height (H) 6.30mm
    Length (L) 226.14mm
    Offset Length 25.5mm
    Stud ⌀ 8.0 mm
    Width (W) 17.75mm
    for Hole ⌀ (FH) M8 x 1.25
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +130 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026702223
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 4.840001kg

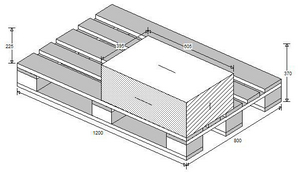

    Packaging 3 - Height (m) 0.2254m
    Packaging 3 - Length (m) 0.6096m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0545m³
    Packaging 3 - Weight (kg) 5.790001kg
    Packaging 3 - Width (m) 0.396875m

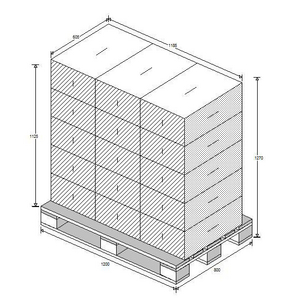

    Packaging 4 - Height (m) 1.269m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.218m³
    Packaging 4 - Weight (kg) 107.85kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
