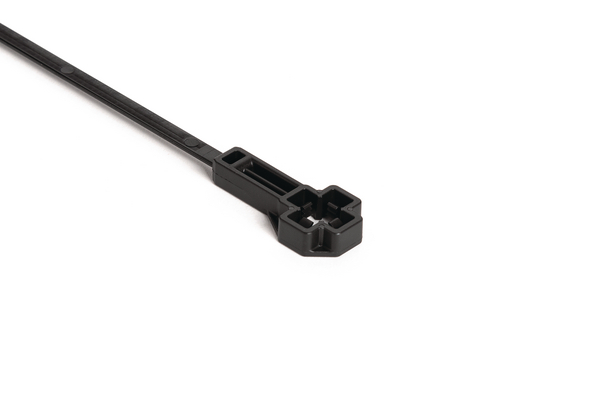

Fixing tie for stud, ⌀2.0-50.0mm, black, 2000
Art.-No. 157-00362 | T50ROSLPM8SMSO25-PA66HIRHSUV-BK

Offset design positions bundles away from obstructions, heat or sources of abrasion.
Low profile head allows mounts to stack, providing more mounting versatility from a single stud.
Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.

More products in this product group:

Application	These fixing ties are coming with outstanding stud retention. With low insertion force and high extraction performance they offer an ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications.
Brand Family	OS-Series
Color	Black (BK)
Description	This mount's offset design positions bundles away from obstructions, heat or sources of abrasion. It features a low-profile head, allowing multiple tie mounts to be stacked on a single bolt and providing space savings in tight areas. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
Min. Tensile Strength (imperial)	50lbs
Min. Tensile Strength (metric)	223N
PART DESCRIPTION	T50ROSLPM8SMSO25-PA66HIRHSUV-BK
Packaging Type	pack
Part No.	157-00362
Product family	1-Piece Tie Assemblies
Product family	Products to use on studs
Short Desc.	Offset Low-Profile M8 Stud Mount Tie, 7.5" Tie, 25.5 mm Offset, 50lb Tensile Strength, PA66HIRHS, Black, 2000/pkg
Type	T50ROSLPM8SMSO25
UV Resistant	Yes

Cable Tie Closure	plastic pawl
Fixation Method	Stud Mount
Height (imperial)	0.25"
Height (metric)	6.30mm
Identification Plate Position	none
Length (imperial)	8.9"
Length (metric)	226.14mm
Max. Bundle Diameter (imperial)	1.97"
Max. Bundle Diameter (metric)	50.0mm
Min. Bundle Diameter (imperial)	0.08"
Min. Bundle Diameter (metric)	2.0mm
Mounting Hole Diameter (imperial)	0.31 x 0.05 "
Mounting Hole Diameter (metric)	M8 x 1.25
Mounting Hole Shape	Round
Offset Length (imperial)	1.0"
Offset Length (metric)	25.5mm
Releasable Closure	No
Stud Diameter (imperial)	0.31"
Stud Diameter (metric)	8.0 mm
Width (imperial)	0.70"
Width (metric)	17.75mm

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen Free	Yes
Material	PA66HIRHSUV
Material	Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No


Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Packaging 1 - Weight (kg)	4.840001kg
Pkg. Qty.	2000
Pkg. Qty.	2000
