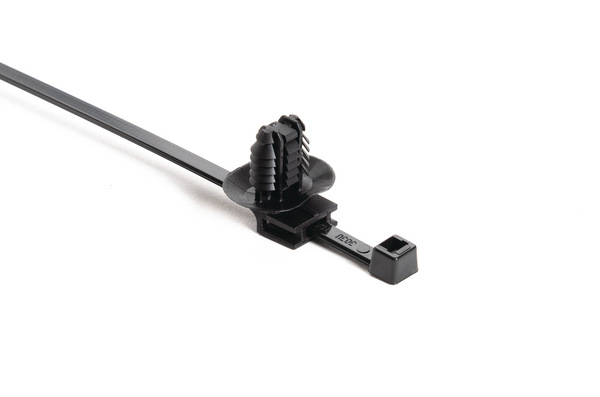

Fixing tie for hole (oval), inside serrated, ⌀2.0-50.0mm, black, 3000pcs.
Art.-No. 156-02273 | T50ROSSADFTOVALSET-PA66HIRHSUV-BK

5 mm offset shifts bundle away from adjacent panels.
Oval fir tree prevents bundle rotation.
HellermannTyton's 4x design provides best in-class installation and extraction resistance for four common oval sizes.
Secure into wide range of panel thicknesses up to 6.75 mm, for application versatility.

Brand Family	OS-Series
Color	Black (BK)

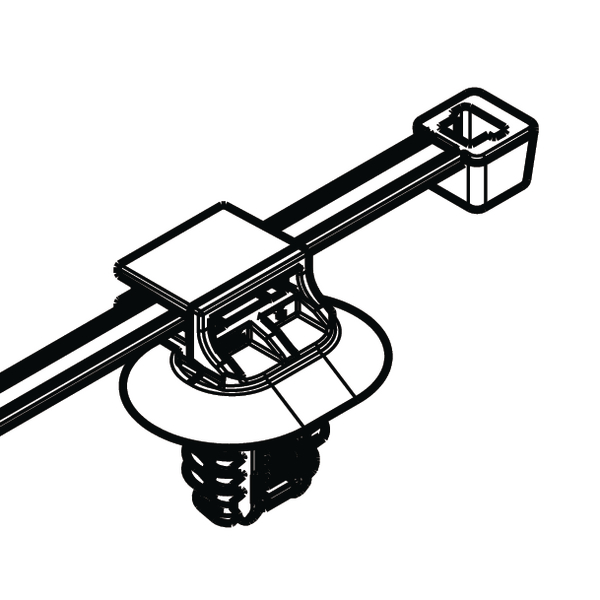

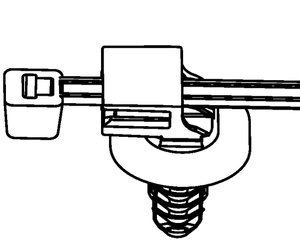

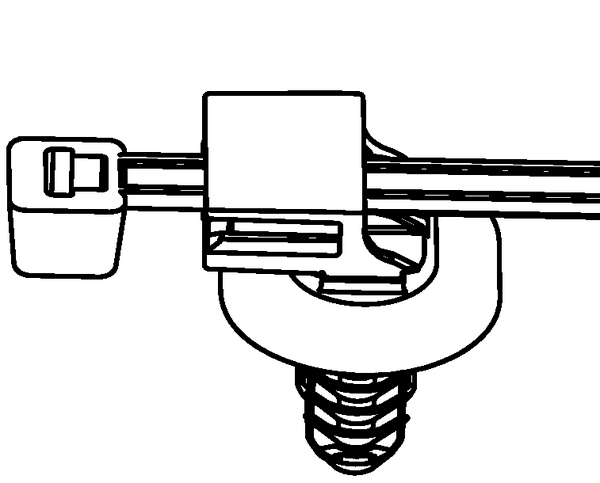

Description	These two-piece fasteners are pre-assembled and offer a simple and versatile method of bundling and mounting cables. Sold as an unassembled set, this oval fir tree and tie combination allows the user to install the tie in two different directions, securing the bundle perpendicular or inline to the oval mounting hole.
Min. Tensile Strength (imperial)	50lbs
Min. Tensile Strength (metric)	225N
PART DESCRIPTION	T50ROSSADFTOVALSET-PA66HIRHSUV-BK
Packaging Type	pack
Part No.	156-02273
Product family	2-Piece Tie Assemblies
Product family	Fixing ties for holes
Short Desc.	2-Piece Cable Tie with Oval Fir Tree Mount, 5mm Offset, 4x Oval Hole FT, PA66HIRHSUV, Black, 3000/ctn
Type	T50ROSSADFTOVALSET
UV Resistant	Yes

Cable Tie Closure	plastic pawl
Fixation Method	Fir Tree for oval holes
Identification Plate Position	none
Max. Bundle Diameter (imperial)	1.97"
Max. Bundle Diameter (metric)	50.0mm
Max. Hole Depth (imperial)	0.27"
Max. Hole Depth (metric)	6.75mm
Max. Panel Thickness (imperial)	0.27"
Max. Panel Thickness (metric)	6.75mm
Min. Bundle Diameter (imperial)	0.08"
Min. Bundle Diameter (metric)	2.0mm
Min. Hole Depth (imperial)	0.02"
Min. Hole Depth (metric)	0.6mm
Min. Panel Thickness (imperial)	0.02"
Min. Panel Thickness (metric)	0.6mm
Mounting Hole Diameter (imperial)	0.24 x 0.48 ", 0.26 x 0.49 ", 0.26 x 0.51 ", 0.28 x 0.47 "
Mounting Hole Diameter (metric)	6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
Mounting Hole Shape	Oval
Panel Thickness (imperial)	0.02 - 0.27"
Panel Thickness (metric)	0.6 - 6.75mm
Releasable Closure	No

CE Certification	No
CSA Certified	No
Material	PA66HIRHSUV
Material	Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Foot Part	PA66HIRHSUV
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Operating Temperature, 1000h	+320°F (+160°C)
Operating Temperature, 5000h	+257°F (+125°C)
Operating Temperature, 500h	+329°F (+165°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No


Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Pkg. Qty.	3000
Pkg. Qty.	3000Pieces
