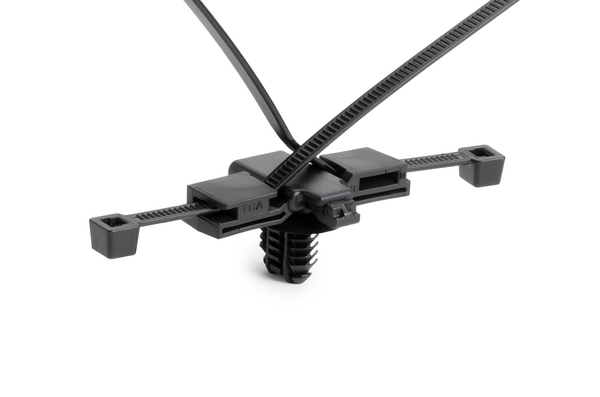

Fixing tie for hole (oval), ⌀1.5-50.0mm, black, 500pcs.
Art.-No. 156-04082 | T50RX2DUALSDFTOCCA-PA66HIRHSUV-BK

Pre-assembled 2-piece fixing tie with fir tree foot part.
Cable tie head can be moved after bundling.
Easy to assemble without the need for a tool.
Disc adjusts tie for pressure from various directions and minimises access of dust and dirt.
Fir tree foot part can be used for a variety of panel thicknesses.
Suitable for use within threaded holes.

More products in this product group:

Application	Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Color	Black (BK)
Description	These two-piece self-affixing cable ties are supplied ready assembled and offer a simple and versatile method of bundling and fastening cables. The deep-hole anchor will easily push into blind holes with or without thread and offers a very secure attachment. The two-piece design enables the head of the tie to be oriented to the required position to ease assembly, while the disc on the top of the fir tree covers the hole and minimizes the ingress of water and dirt.
Min. Tensile Strength (imperial)	50lbs
Min. Tensile Strength (metric)	225N
PART DESCRIPTION	T50RX2DUALSDFTOCCA-PA66HIRHSUV-BK
Packaging Type	pack
Part No.	156-04082
Product family	2-Piece Tie Assemblies
Product family	Fixing ties for holes
Short Desc.	Dual Cable Ties with Oval Fir Tree, 8"L, 6.2 x 12.2 mm;6.5 x 12.5 mm;6.5 x 13.0 mm or 7.0 x 12.0 mm Mounting Hole, PA66HIRHSUV, BK, 500/ctn
Type	T50RX2DUALSDFTOCCA
UV Resistant	Yes

Cable Tie Closure	plastic pawl
Cable Tie Head Length (imperial)	0.29"
Cable Tie Head Width (imperial)	0.3"
Fixation Method	Fir Tree for oval holes
Height (imperial)	0.86"
Height (metric)	21.9mm
Height 2 (imperial)	0.50"
Height 2 (metric)	12.85mm
Identification Plate Position	none
Length (imperial)	8.0"
Length (metric)	203.2mm
Max. Bundle Diameter (imperial)	1.97"
Max. Bundle Diameter (metric)	50.0mm
Max. Hole Depth (imperial)	0.26"
Max. Hole Depth (metric)	6.75mm
Max. Mounting Hole Diameter (imperial)	0.51"
Max. Panel Thickness (imperial)	0.26"
Max. Panel Thickness (metric)	6.75mm
Min. Bundle Diameter (imperial)	0.06"
Min. Bundle Diameter (metric)	1.5mm
Min. Hole Depth (imperial)	0.02"
Min. Hole Depth (metric)	0.60mm
Min. Mounting Hole Diameter (imperial)	0.24"
Min. Panel Thickness (imperial)	0.02"
Min. Panel Thickness (metric)	0.6mm
Mounting Hole Diameter (imperial)	0.24 x 0.48 ", 0.26 x 0.49 ", 0.26 x 0.51 ", 0.28 x 0.47 "
Mounting Hole Diameter (metric)	6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
Mounting Hole Shape	Oval
Panel Thickness (imperial)	0.02 - 0.26"
Panel Thickness (metric)	0.6 - 6.75mm
Width (imperial)	1.10"
Width (metric)	28.0mm

CE Certification	No
CSA Certified	No
Cable Tie	Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Flammability	UL 94 HB
Halogen Free	Yes
Material	PA66HIRHSUV
Material	Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Foot Part	PA66HIRHSUV
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No
