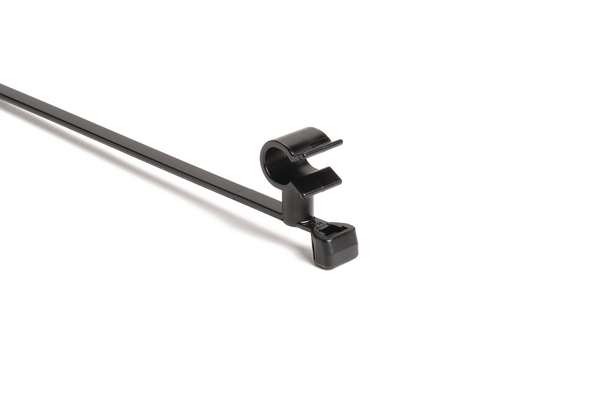

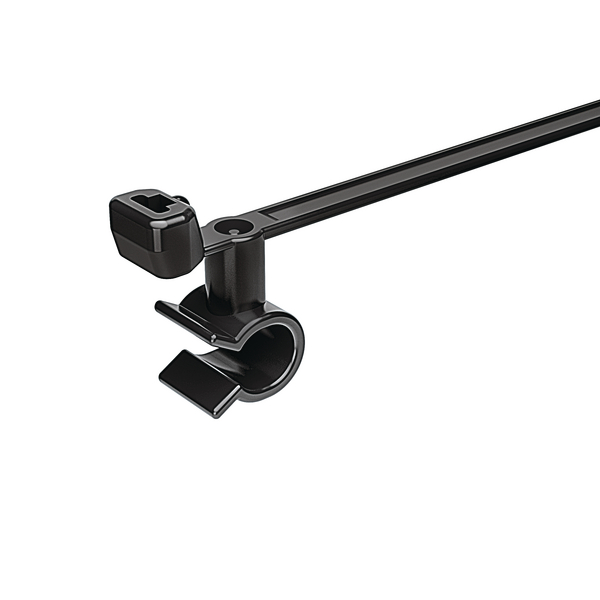

Fixing tie with pipe/tube holder, ⌀50.0mm, black, 500pcs.
Art.-No. 156-02415 | T50SMVC6.5-PA66HS/PA66HIRHS-BK

Copied

    Add to watchlist
    Downloads e-Learning
    Color Black (BK)
    Description HellermannTyton’s 2-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.
    Key product features rotatable, for multiple routing
    Min. Tensile Strength (imperial) 50lbs
    Min. Tensile Strength (metric) 222N
    PART DESCRIPTION T50SMVC6.5-PA66HS/PA66HIRHS-BK
    Packaging Type bag
    Part No. 156-02415
    Product family 2-Piece Tie Assemblies
    Product family Products for wires and hoses, Products for parallel/multiple routing
    Short Desc. 1-Piece Cable Tie with Pipe Clip 6.5mm, 8.0" Tie, 50lb Tensile Strength, PA66HS/PA66HIRHS, BK, 500/pkg
    Type T50SMVC6.5
    Fixation Method Omega Clip
    Identification Plate Position none
    Length (imperial) 8.27"
    Length (metric) 210.0mm
    Max. Bundle Diameter (imperial) 1.97"
    Max. Bundle Diameter (metric) 50.0mm
    Thickness (metric) 1.35mm
    Width (imperial) 0.19"
    Width (metric) 4.7mm
    Material PA66HS, PA66HIRHS
    Material Polyamide 6.6 heat stabilized (PA66HS), Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
    Material Foot Part PA66HIRHS
    Operating Temperature -40°F to +221°F (-40°C to +105°C)
    ROHS compliant Yes
    Pkg. Qty. 500Pieces
    Pkg. Qty. 500
