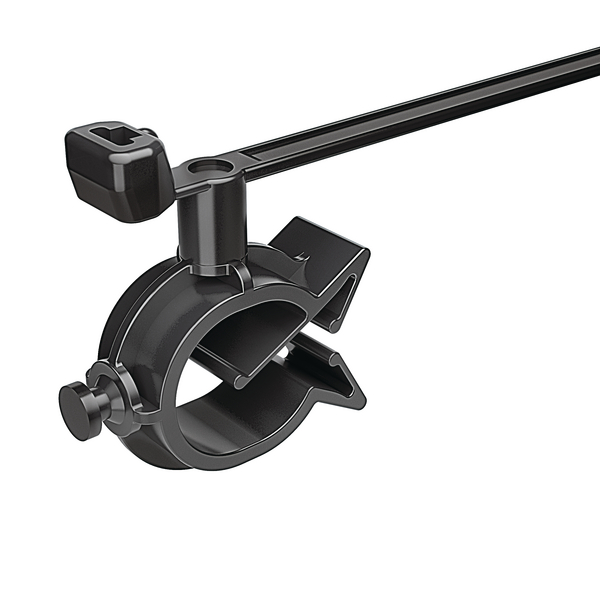

Fixing tie with pipe/tube holder, inside serrated, ⌀2.0-50.0mm, grey, 500pcs.
Art.-No. 156-02610 | T50SMVCOC10-14-PA46-GY |

Copied
T50SMVCOC10-14
T50SVCOC/T50SMVCOC

    • Clips offer an easy securing option when cable ties can't be used.
    • Clips are reusable, making relocation or adjustments simple.
    • Clips can be attached to the panel prior to installing the pipe or hose.
    • Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point.
    • All-in-one bundling and mounting solution reduces costs.
    Add to watchlist
    Downloads
    Colour Grey (GY)
    Description HellermannTyton’s 1-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features for multiple routing, releasable, removable
    Material Polyamide 4.6 (PA46)
    Min.Tensile Strength 222N
    PART DESCRIPTION T50SMVCOC10-14-PA46-GY
    Package Content 500pcs.
    Package Content packed in bag
    Product Group 2-piece fixing ties with pipe clip
    Type T50SMVCOC10-14
    Weight/Unit 0.0031kg
    Attach to ⌀ 10.0 - 14.0 mm
    Bundle ⌀ 2.0-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 2.0mm
    Length (L) 210mm
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026618210
    Packaging 1 - Height (m) 0.39m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0998985m³
    Packaging 1 - Weight (kg) 1.593597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.381582kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 145.608kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
