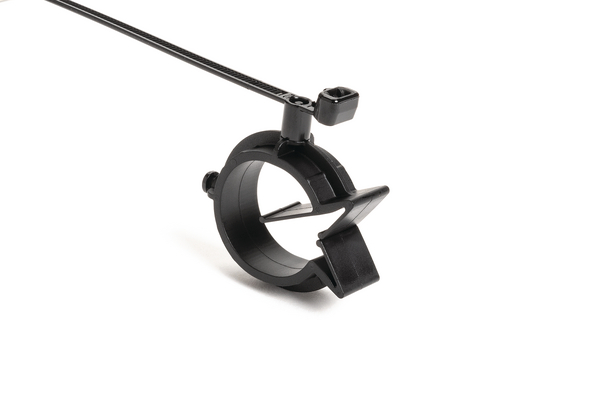

2-Piece Fixing Ties with Pipe Clip, twistable 360°  T50SMVCOC25-31

Article number: 156-01344

T50SMVCOC25-31

Certifications & Approvals

T50SMVCOC25-31 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Features and Benefits The simple to use inside serrated fixing tie series provides the opportunity to attach a wire or hose to an existing harness. Offering the facility of a full 360 degrees of rotation, the wire/hose can be oriented in any direction in realtion to the main harness.Ideally suited for any application in which the wire or hose can move in relation to the fixing point.
Fixation Method Omega Clips
GLOBAL PART DESCRIPTION T50SMVCOC25-31-PA66HS/PA66HIRHS-BK
Identification Plate Position none
Pack Cont. 250
Package Quantity per bag
Product Group 2-Piece Fixing Ties with Pipe Clip, twistable 360°
Attach to Diameter 0.98 - 1.22 "
Attach to Ø 25.0 - 31.0mm
Bundle ∅ max. 50.0mm
Bundle ∅ min. 2.0mm
Length (L) 210.0mm
Min.Tensile Strength 222N
Thickness (T) 1.35mm
Width (W) 4.7mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94 HB
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C
Specifications
EAN / GTIN 4031026505398
ETIM 6.0 EC000046
UNSPSC Key 39121717
