30/10/2025

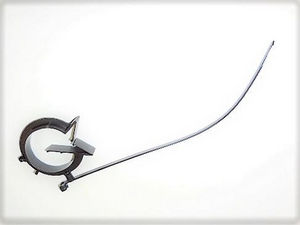

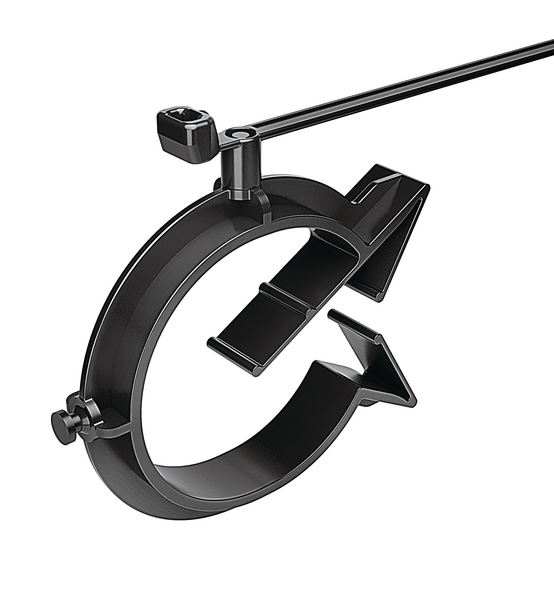

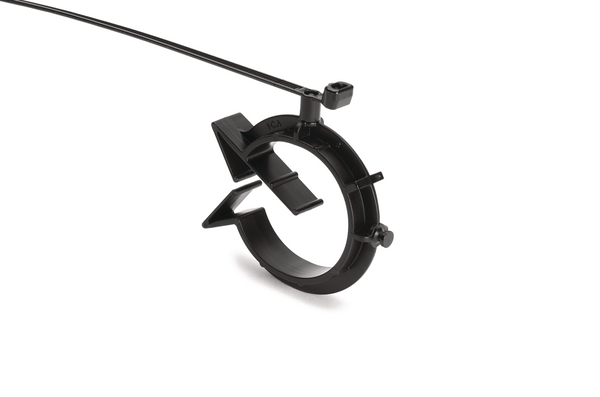

Fixing tie with pipe/tube holder, inside serrated, ⌀2.0-50.0mm, black, 250pcs.
Art.-No. 156-02445 | T50SMVCOC31-39-PA66HS/PA66HIRHS-BK |

Copied
T50SVCOC/T50SMVCOC
T50SMVCOC31-39

    • Clips offer an easy securing option when cable ties can't be used.
    • Clips are reusable, making relocation or adjustments simple.
    • Clips can be attached to the panel prior to installing the pipe or hose.
    • Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point.
    • All-in-one bundling and mounting solution reduces costs.
    Package size
    Add to watchlist
    Downloads
    Application These inside serrated fixing ties provide the opportunity to attach a wire
    or hose to an existing harness. Offering a full 360 degrees rotation, the
    wire/hose can be oriented in any direction in relation to the main harness
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features lockable, rotatable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Min.Tensile Strength 222N
    PART DESCRIPTION T50SMVCOC31-39-PA66HS/PA66HIRHS-BK

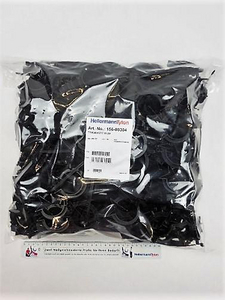

    Package Content 250pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties with Pipe Clip, twistable 360°
    Short Description 2-Piece fixing tie 210x4.7 mm, with pipe clip, PA66HS/PA66HIRHS, black
    Type T50SMVCOC31-39
    Weight/Unit 0.007515kg
    Attach to ⌀ 31.0 - 39.0
    Bundle ⌀ 2.0-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 2.0mm
    Length (L) 210mm
    Thickness (T) 1.35mm
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026278940
    Packaging 1 - Height (m) 0.155m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 250
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03970325m³
    Packaging 1 - Weight (kg) 1.922347kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 8.509388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 12000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 123.132kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
    Art.-No.: 156-02445 Contact
