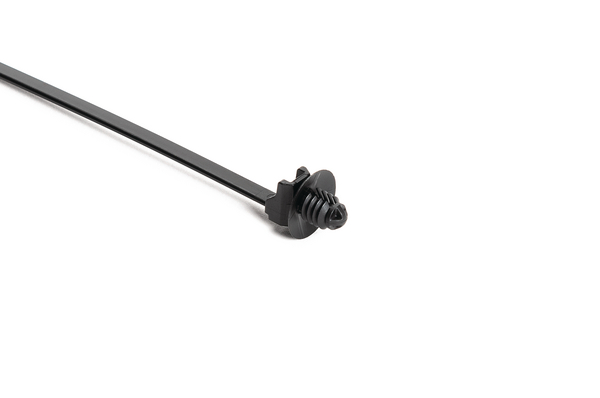

Fixing tie for hole (round), ⌀1.0-35.0mm, black, 1000pcs.
Art.-No. 157-00376 | T50SOSFT6.5-E4-PA66HS-BK

Cable tie head always situated in defined position.
Easy to assemble without the need for a tool.
Disc adjusts tie for pressure from various directions and minimises access of dust and dirt.
Fir tree foot part can be used for a variety of panel thicknesses.
Suitable for use within threaded holes.
Versions for oval holes feature anti-twist protection.

Package size

500 pcs.

1000 pcs.

4000 pcs.

More products in this product group:

Application	Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Color	Black (BK)
Description	One-piece mounting ties offer a complete solution by both bundling and mounting wires, cables and tubes. The fir tree mount provides low insertion force with a high extraction force. Outside serrations on the cable tie leave a smooth interior surface that’s gentler on sensitive wire insulation. The unique head design allows the cable tie to firmly hold bundles as small as .06" diameter. The disc offers added protection against debris.
Key product features	products for automatic tools
Min. Tensile Strength (imperial)	50lbs
Min. Tensile Strength (metric)	225N
PART DESCRIPTION	T50SOSFT6.5-E4-PA66HS-BK
Packaging Type	pack
Part No.	157-00376
Product family	1-Piece Tie Assemblies
Product family	Fixing ties for holes
Short Desc.	1-Piece Cable Tie with Fir Tree Mount with Disc, 0.25 - 0.27" Mounting Hole, PA66HS, Black, 1000/pkg
Type	T50SOSFT6.5-E4
UV Resistant	No


Cable Tie Closure	plastic pawl
Disc Diameter (imperial)	0.63"
Disc Diameter (metric)	16.0mm
Fixation Method	Fir tree for round holes
Identification Plate Position	none
Length (imperial)	6.3"
Length (metric)	161.5mm
Max. Bundle Diameter (imperial)	1.38"
Max. Bundle Diameter (metric)	35.0mm
Max. Hole Depth (imperial)	0.17"
Max. Hole Depth (metric)	4.2mm
Max. Mounting Hole Diameter (imperial)	0.28"
Max. Panel Thickness (imperial)	0.17"
Max. Panel Thickness (metric)	4.2mm
Min. Bundle Diameter (imperial)	0.04"
Min. Bundle Diameter (metric)	1.0mm
Min. Hole Depth (imperial)	0.02"
Min. Hole Depth (metric)	0.6mm
Min. Mounting Hole Diameter (imperial)	0.25"
Min. Panel Thickness (imperial)	0.02"
Min. Panel Thickness (metric)	0.6mm
Mounting Hole Diameter (imperial)	0.25 - 0.28 "
Mounting Hole Diameter (metric)	6.3 - 7.0 mm
Mounting Hole Shape	Round
Panel Thickness (imperial)	0.02 - 0.17"
Panel Thickness (metric)	0.6 - 4.2mm
Releasable Closure	No
Thickness (imperial)	0.05"
Thickness (metric)	1.3mm
Width (imperial)	0.18"
Width (metric)	4.6mm

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Material	PA66HS
Material	Polyamide 6.6 heat stabilized (PA66HS)
Operating Temperature	-40°F to +257°F (-40°C to +125°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No
