Fixing tie for stud, outside serrated, ⌀1.0-35.0mm, black, 500pcs.
Art.-No. 155-05701 | T50SOSSBH5E-PA66HS-BK |

Copied
The head design offers additional fixing of soft materials.
T50SOSSBH5E.
One-piece cable tie with oval stud mount.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Can retain insulation materials while fixing a cable bundle
    Add to watchlist

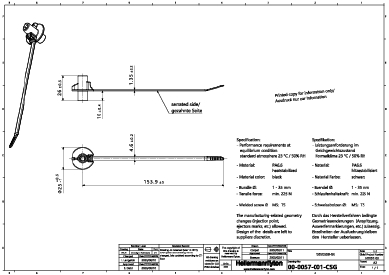

    Downloads CAD-Download
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50SOSSBH5E-PA66HS-BK
    Package Content 500pcs.
    Package Content packed in pack
    Product Family With plate to fix isolation material
    Product Group 1-Piece Fixing Ties for Weld Studs
    Releasable Closure (Yes/No) No
    Short Description 1-Piece Fixing Tie for Weld Studs PA66HS 165x4.6 black
    Tie Closure plastic pawl
    Type T50SOSSBH5E
    Variant Outside Serrated
    Weight/Unit 0.002767kg
    Bundle ⌀ 1.0-35.0mm
    Bundle ⌀ max. 35.0mm
    Bundle ⌀ min. 1.0mm
    Height (H2) 16mm
    Length (L) 166.4mm
    Stud ⌀ 0.197"
    Stud ⌀ 5.0 mm
    Thickness (T) 1.35mm
    Width (W) 4.6mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 4031026212746
    Packaging 1 - Height (m) 0.11m
    Packaging 1 - Length (m) 0.26m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01144m³
    Packaging 1 - Weight (kg) 1.4235kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.364m
    Packaging 3 - Length (m) 0.563m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0777m³
    Packaging 3 - Weight (kg) 9.502kg
    Packaging 3 - Width (m) 0.379m
    Packaging 4 - Height (m) 1.236m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.187m³
    Packaging 4 - Weight (kg) 135.024kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
