Fixing tie for hole (round), outside serrated, ⌀1.5-30mm, green, 500pcs.
Art.-No. 126-00216 | T50SOSSFT6.5E-MD-PA66HS-GN

Copied

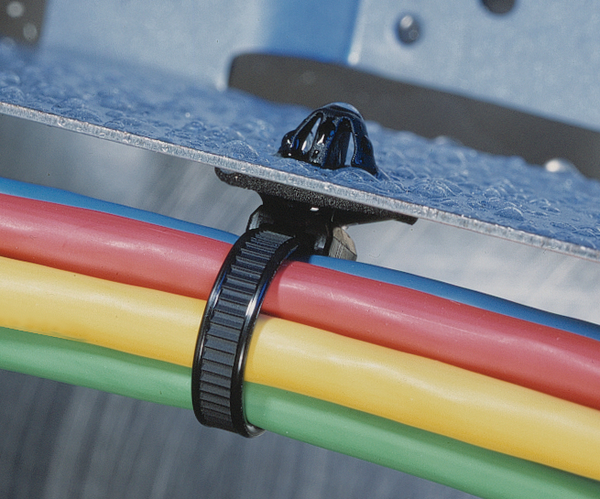

  • One-piece fixing ties with cellular rubber disc
  • Especially suitable for door and tailgate harnesses used for car body applications
  • Made from PA66 heat-stabilised material
  • Cellular rubber disc minimises ingress of dust, dirt and splash water
Application The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors . We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
Colour Green (GN)
Fixation Method arrowhead
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS)
Min.Tensile Strength 180N
PART DESCRIPTION T50SOSSFT6.5E-MD-PA66HS-GN
Package Content 500pcs.
Package Content packed in bag
Product Family for round holes, sealed
Product Group 1-piece fixing ties with arrowhead, with disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SOSSFT6.5E-MD
Variant Outside Serrated
Bundle ⌀ 1.5-30mm
Bundle ⌀ max. 30mm
Bundle ⌀ min. 1.5mm
Disc ⌀ 16mm
Length (L) 158.8mm
Width (W) 4.6mm
for Hole ⌀ (FH) 6.3 - 6.7 mm
for Panel Thickness min - max 0.6 - 1.8 mm
for Panel Thickness min - max 0 - 0.1 "
Flammability UL 94 V2
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
Country of Origin SG
Customs Number 39269099
GTIN-13 / EAN 4031026486628
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
