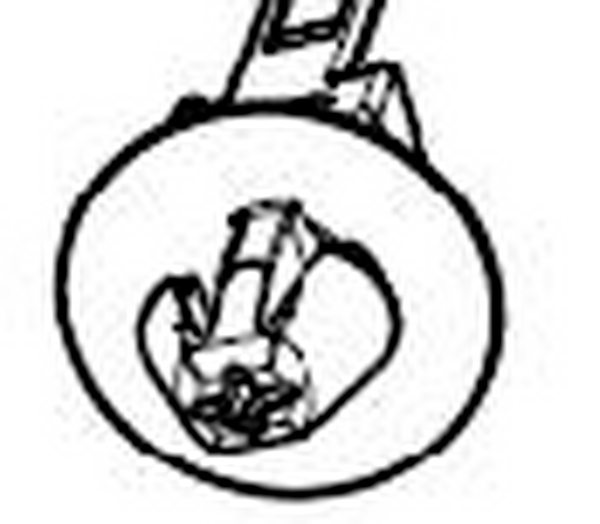

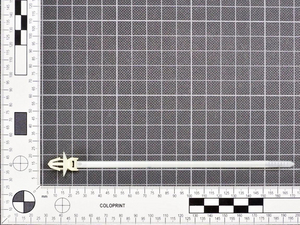

1-piece fixing ties with arrowhead, with disc : T50SOSSFT6.5E-MS
1-piece fixing ties with arrowhead, with disc, for round holes, Article number: 126-00066
Features
- Easy to install without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
- Cable tie head always situated in a defined position
- KSFT-types with specially rounded arrowhead minimise the assembly height
Certifications & Approvals
Application
With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application.
1-piece fixing ties with arrowhead, with disc, for round holes is suitable for following markets and industries
More products in this product group
1-piece fixing ties with arrowhead, with disc >| Colour | Natural (NA) |
| Fixation Method | Arrowhead |
| Identification Plate Position | none |

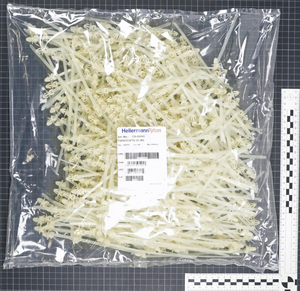

| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50SOSSFT6.5E-MS-PA66HS-NA |
| Product Family | 1-piece fixing ties with arrowhead, with disc, for round holes |
| Product Group | 1-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 1.5mm |
| for Hole ∅ (FH) | 6.25 - 6.75 mm |
| for Panel Thickness min - max | 1.9 - 2.2 mm |
| for Panel Thickness min - max | 0.1 - 0.1 " |
| Length (L) | 163mm |
| Min.Tensile Strength | 180N |
| Thickness (T) | 1.3mm |
| Width (W) | 4.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026279053 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03555m³ |
| Packaging 1 - Weight (kg) | 0.879135kg |
| Packaging 1 - Width (m) | 0.45m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 9.61135kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 136.32kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.85kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
| UNSPSC Key | 39121717 |
