25/05/2024

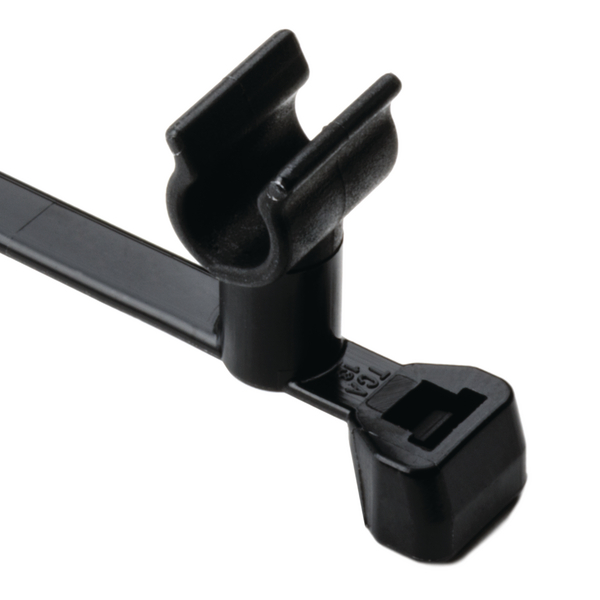

Fixing tie for cable bundles/with pipe/tube holder, Ø1.0-35.0mm, black, 500pcs.
Art.-No. 156-02535 | T50SVC5-PA66HIRHSUV/PA66HS-BK |  Details

T50SVC5 rotates in any direction.

    • Simply clip on a wire or hose
    • Fixing clip offers full 360° rotation
    • Routed cable can move in any direction in relation to the fixing point
    • Inside serrated cable tie
    • Ideally used in the Automotive Industry
    Show more
    Add to watchlist
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SVC5-PA66HIRHSUV/PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties with Pipe Clip, twistable 360°
    Releasable Closure (Yes/No) No
    Type T50SVC5
    Attach to Diameter 0.18 - 0.20 "
    Attach to Ø 4.5 - 5.2
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.0-35.0mm
    Bundle ∅ min. 1.0mm
    Length (L) 155.0mm
    Min.Tensile Strength 222N
    Width (W) 4.7mm
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
    Show all
