20/02/2026

Fixing tie with pipe/tube holder, inside serrated, ⌀2.0-35.0mm, black, 500pcs.
Art.-No. 156-01341 | T50SVCOC19-24.5-PA66HS/PA66HIRHS-BK

Copied
Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point.
T50SVCOC/T50SMVCOC
T50S(M)VCOC19-24.5
T50S(M)VCOC19-24.5

    • Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point.
    • 2-piece design allows installer to slide clip around cable tie to obtain optimum orientation
    • Clip is reusable, making relocation or adjustments simple.
    Package size
    Add to watchlist
    Downloads e-Learning
    Application These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
    Color Black (BK)

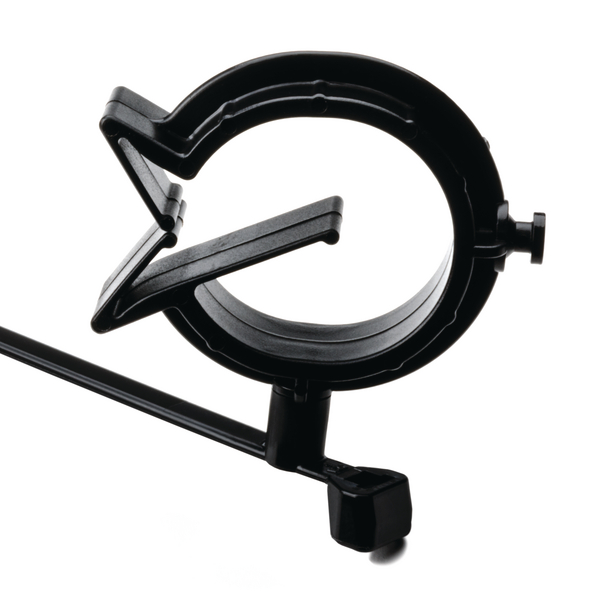

    Description HellermannTyton’s 2-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.
    Key product features rotatable, for multiple routing, removable
    Min. Tensile Strength (imperial) 50lbs
    Min. Tensile Strength (metric) 222N
    PART DESCRIPTION T50SVCOC19-24.5-PA66HS/PA66HIRHS-BK
    Packaging Type pack
    Part No. 156-01341
    Product family 2-Piece Tie Assemblies
    Product family Products for wires and hoses, Products for parallel/multiple routing
    Short Desc. 2-Piece Cable Tie with Pipe Clip, 6.0" Long, Attaches to Diameter 0.75 - 0.96", PA66HS/PA66HIRHS, Black, 500/pkg
    Type T50SVCOC19-24.5
    UV Resistant No
    Cable Tie Closure plastic pawl
    Fixation Method Omega Clip
    Identification Plate Position none
    Length (imperial) 6.1"
    Length (metric) 155.0mm
    Max. Bundle Diameter (imperial) 1.38"
    Max. Bundle Diameter (metric) 35.0mm
    Min. Bundle Diameter (imperial) 0.08"
    Min. Bundle Diameter (metric) 2.0mm
    Thickness (imperial) 0.05"
    Thickness (metric) 1.35mm
    Width (imperial) 0.19"
    Width (metric) 4.7mm
    CE Certification No
    CSA Certified No
    Cable Tie Polyamide 6.6 heat stabilized (PA66HS)
    Flammability UL 94 HB
    Material PA66HS, PA66HIRHS
    Material Polyamide 6.6 heat stabilized (PA66HS), Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
    Material Foot Part PA66HIRHS
    Operating Temperature -40°F to +221°F (-40°C to +105°C)
    Prop65 Warning No
    REACH Conformity Yes
    ROHS compliant Yes
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Customs Number (Schedule B) 3926909988
    Harmonized Tariff Schedule Code 3926.90.9989
    Pkg. Qty. 500
    Pkg. Qty. 500Pieces
