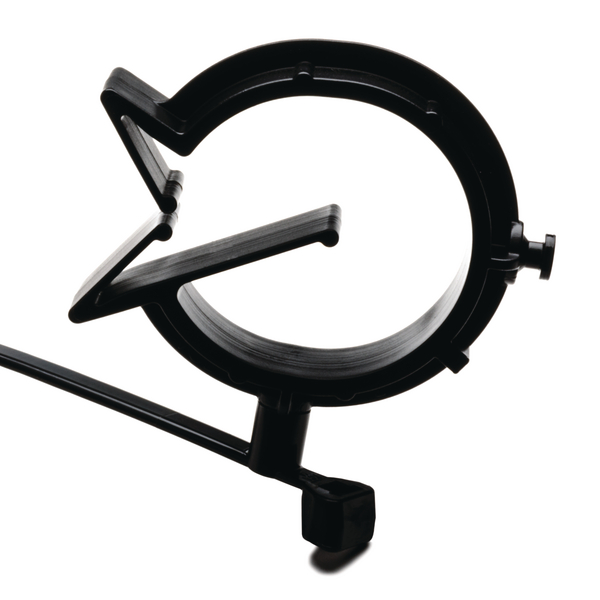

2-Piece Fixing Ties with Pipe Clip, twistable 360°  T50SVCOC25-31

Article number: 156-01343


  • simply clip onto a wire or hose
  • Fixing clip offers full 360° rotation
  • Routed cable can move in any direction in relation to the fixing point
  • Inside serrated cable tie
  • Ideally used in the Automotive Industry

Certifications & Approvals


These inside serrated fixing ties provide the opportunity to attach a wire
or hose to an existing harness. Offering a full 360 degrees rotation, the
wire/hose can be oriented in any direction in relation to the main harness.

T50SVCOC25-31 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Fixation Method Omega Clips
Identification Plate Position none
Pack Cont. 250
Package Quantity per bag
Product Group 2-Piece Fixing Ties with Pipe Clip, twistable 360°
Tie Closure plastic pawl
Attach to Diameter 0.98 - 1.22 "
Attach to Ø 25.0 - 31.0mm
Bundle ∅ max. 35.0mm
Bundle ∅ min. 2.0mm
Length (L) 155.0mm
Min.Tensile Strength 222N
Thickness (T) 1.35mm
Width (W) 4.7mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94 HB
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C
EAN / GTIN 4031026505336
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
UNSPSC Key 39121717
