23/06/2025
For new projects please use part number 156-03047!

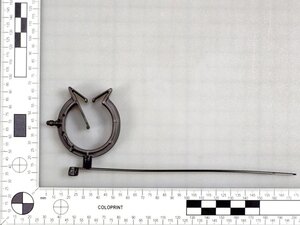

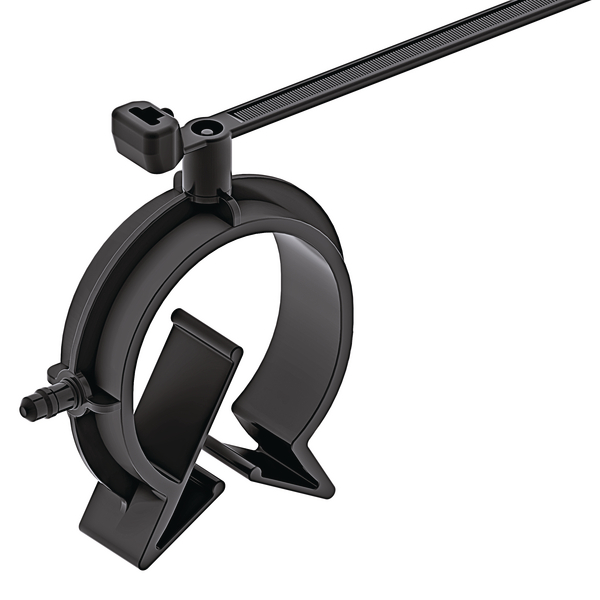

Fixing tie with pipe/tube holder, inside serrated, ⌀35.0mm, black, 250pcs.
Art.-No. 156-01074 | T50SVCOC25.0-31.0ST-PA66HS/PA66HIRHS-BK |

Copied

    Add to watchlist
    Downloads

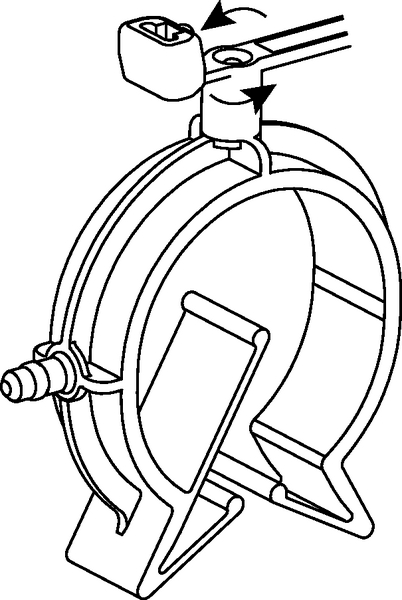

    Application These inside serrated fixing ties provide the opportunity to attach a wire
    or hose to an existing harness. Offering a full 360 degrees rotation, the
    wire/hose can be oriented in any direction in relation to the main harness.
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Internet Customer Notice For new projects please use part number 156-03047!
    Key product features lockable, rotatable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SVCOC25.0-31.0ST-PA66HS/PA66HIRHS-BK
    Pack Cont. 250pcs.

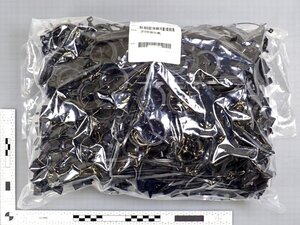

    Package Content packed in bag
    Product Group 2-piece fixing ties with pipe clip
    Short Description 2-Piece fixing tie 155x4.7 mm, with pipe clip, PA66HIRHS, black
    Type T50SVCOC25.0-31.0ST
    Attach to ⌀ 25.0 - 31.0
    Bundle ⌀ 35.0mm
    Bundle ⌀ max. 35.0mm
    Length (L) 155.0mm
    Min.Tensile Strength 222N
    Weight/Unit 0.005773kg
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026461854
    Packaging 1 - Height (m) 0.14m
    Packaging 1 - Length (m) 0.55m
    Packaging 1 - Qty 250
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03696m³
    Packaging 1 - Weight (kg) 1.486847kg
    Packaging 1 - Width (m) 0.48m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 1250
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 7.994235kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 15000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 116.955kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
