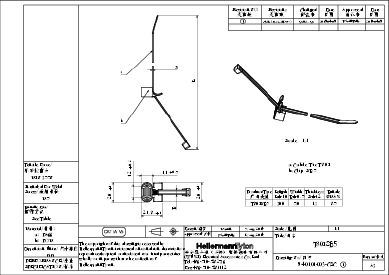

Fixing tie for stud, inside serrated, ⌀2.0-81.0mm, black, 500pcs.
Art.-No. 156-01403 | T80ISB5-PA66HIRHS/PA66HS-BK

These assemblies consist of a cable tie and a weld stud mounting base - supplied pre-assembled for ease and speed of installation they allow the tie head to be rotated into the perfect position for installation.
All types feature a 'soft-push' design - no tools are required to fit the parts to the stud.
The SBH type is specifically designed to not only secure cable bundles but the 'mushroom-shape' of the fixing allows for installation and securing of insulation or a sound deadening blanket.
The SBS types are ideal for installation onto the stud prior to attaching the cable. Ie. No lateral tolerances required.
The SB5 types are designed to allow a lateral tolerance for the fixing point. Ie. Where the cable tie is attached to the harness before fixing to the stud and possible miss-alignment can occur and some lateral tolerance is require

More products in this product group:

Application	Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
Color	Black (BK)
Min. Tensile Strength (metric)	355N
PART DESCRIPTION	T80ISB5-PA66HIRHS/PA66HS-BK
Packaging Type	bag
Part No.	156-01403
Product family	2-Piece Tie Assemblies
Product family	Products to use on studs
Type	T80ISB5

Cable Tie Closure	plastic pawl
Fixation Method	Weld Stud Fixing
Height (metric)	1.2mm
Height 2 (metric)	10mm
Identification Plate Position	none
Length (metric)	300mm
Length 2 (metric)	20mm
Max. Bundle Diameter (metric)	81.0mm
Min. Bundle Diameter (metric)	2.0mm
Min. Stud Length (metric)	14.2mm
Stud Diameter (metric)	5.0 mm
Width (metric)	4.6mm
Width 2 (metric)	21.8mm

Material	PA66HIRHS, PA66HS
Material	Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS), Polyamide 6.6 heat stabilized (PA66HS)
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
ROHS compliant	Yes
