27/04/2024

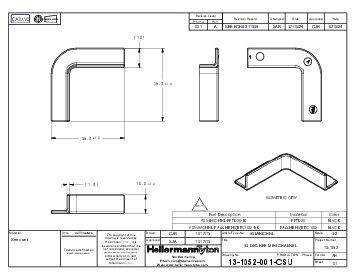

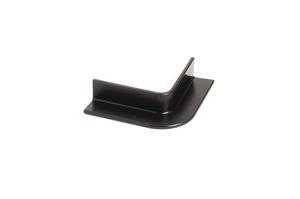

Mini cable channel, 90°, for hole (round), L=38.50mm, black, 50pcs.
Art.-No. 151-03089 | 90MINICHNL-PPTD20-BK |  Details

Angled mini channel provides safe routing of wires around corners or obstructions

    • Angled channel allows specific guidance around corners or obstructions
    • U-Shape channel provides three sides of protection for wire or bundle
    • Protects against abrasion and other environmental factors
    • Types made from PPT20 material convince with a high operating temperature
    Package size
    Add to watchlist
    Downloads
    Application The mini cable channel family allows a cost effective routing solution that provides protection and configurable routing. Pieces are modular and interchangeable, providing high levels of customization. Mini channels replace engineered channels which are costly to design and develop.
    Colour Black (BK)
    Material Polypropylene 20% Talkum (PPTD20)
    Pack Cont. 50pcs.
    Package Content packed in bag
    PART DESCRIPTION 90MINICHNL-PPTD20-BK
    Product Family Modular and interchangeable cable routing system
    Product Group Mini cable channel family
    Angle 90°
    Height (H) 10.0mm
    Length (L) 38.50mm
    Length (L2) 38.50mm
    Width (W) 1.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +65 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026631905
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39131600
