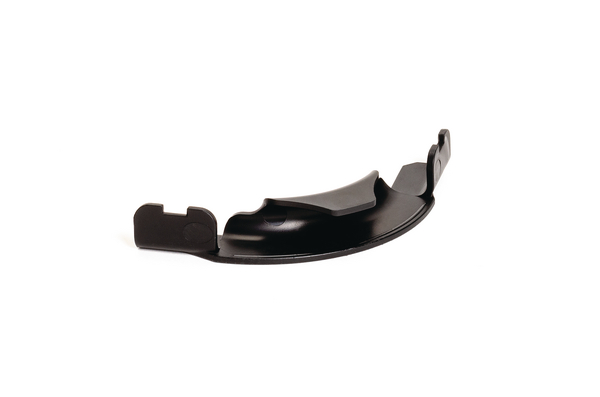

90RA1-PA66HIRHSUV-BK

Art.-No. 151-02418

| 90RA1-PA66HIRHSUV-BK

|

U-Shape channel provides three sides of protection for wire or bundle.

Add to watchlist

Downloads

More products in this product group:

Mini cable channel family

Base Data

Application	HellermannTyton Mini Channels provide protection and configurable routing in a cost-effective wire management solution. The variety of sizes and configurations enables engineers and installers to create optimum routing scenarios. Mini channels replace engineered channels that are costly to design and develop.
Colour	Black (BK)
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	90RA1-PA66HIRHSUV-BK
Package Content	300pcs.
Package Content packed in	carton
Type	90RA1
UV-Stabilised	Yes

Product Dimensions

Angle	90
Height (H)	19.0mm
Length (L)	94.0mm
Length (L2)	94.0mm
Width (W)	132.0mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Operating Temperature	-40 °C to +105 °C
Operating Temperature, 1000h	+160 °C
Operating Temperature, 5000h	+125 °C
Operating Temperature, 500h	+165 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	US
GTIN-13 / EAN	4031026725703
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.219075m
Packaging 3 - Length (m)	0.6064m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0529m³
Packaging 3 - Width (m)	0.3984625m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39131600
