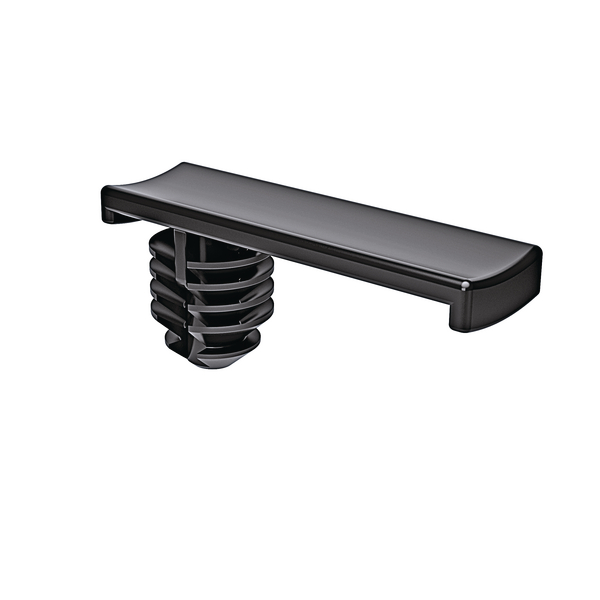

Bundling clip for hole (round), L=27.3mm, black, 2000pcs.
Art.-No. 151-01330 | BCOWFT6M-PA66HIRHS-BK

Copied
Package size
Application Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
Colour Black (BK)
Fixation Method Plug-in mounting
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION BCOWFT6M-PA66HIRHS-BK
Pack Cont. 2000pcs.
Package Content packed in bag
Product Family Bundling Clip, One Wing
Product Group Bundling Clips with Fir Tree, for Round Holes
Type BCOWFT6M
Bundling Bar Length 27.3mm
Height (H) 11.6mm
Length (L) 27.3mm
Panel Thickness max. 0.6 - 3.5mm
Width (W) 8.0mm
for Hole ⌀ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.6 - 3.5 mm
Operating Temperature -40 °C to +105 °C
Country of Origin CN
GTIN-13 / EAN 4031026514277
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
