25/07/2025

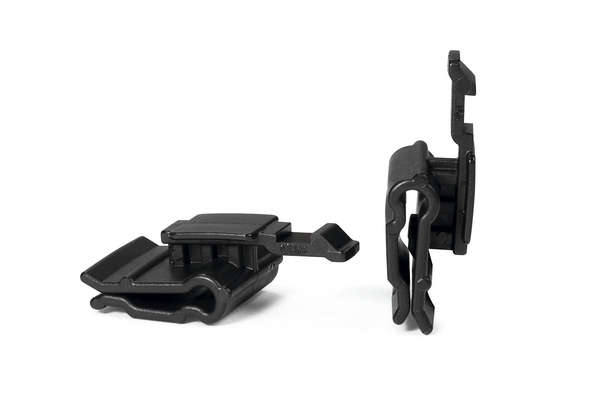

Connector clip, black, 1000pcs.
Art.-No. 151-03285 | CC10EC1.2SV-PA6-BK |

Copied

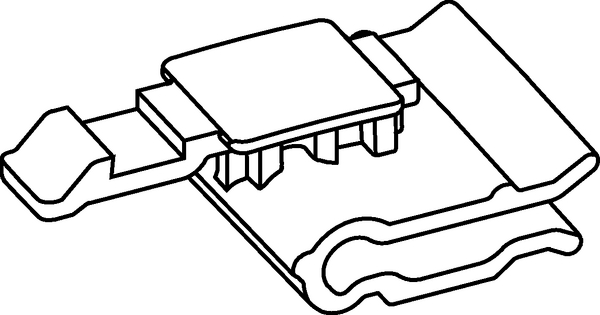

ConnectorClip for edges (side / vertical)

    • Simply push per hand onto a plastic edge
    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered spring steel
    • Ideal for applications where holes or adhesives are not suitable
    Add to watchlist
    Downloads
    Application Connector clip for edges, for fastening cables and wires in places where screwing or adhering is not possible.
    Colour Black (BK)
    Material Polyamide 6 (PA6)
    PART DESCRIPTION CC10EC1.2SV-PA6-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Type CC10EC1.2SV

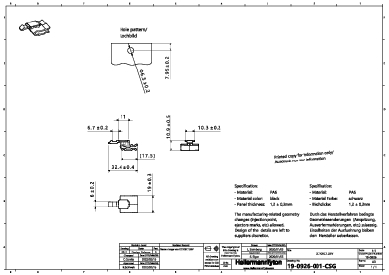

    Height (H) 10.9mm
    Length (L) 32.4mm
    Panel Thickness max. 1.2mm
    Weight/Unit 0.001788kg
    Width (W) 19.0mm
    for Hole ⌀ (FH) 6.5 mm
    for Panel Thickness min - max 1 - 1.4 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026649115
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 1.809815kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 11.82089kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.204m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.156m³
    Packaging 4 - Weight (kg) 257.44kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
