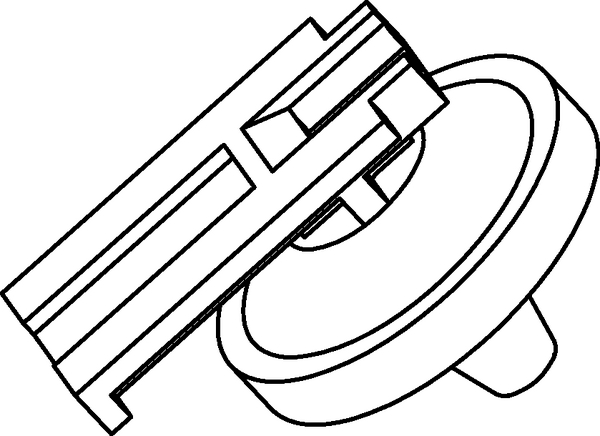

Connector clip, black, 500pcs.


Art.-No. 151-03204

| CC19SFT7-MD-PA66HIRHS-BK

 |

Copied
1357319

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method arrowhead
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC19SFT7-MD-PA66HIRHS-BK
    Package Content 500pcs.
    Package Content packed in bag
    Type CC19SFT7-MD
    Typical Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Disc ⌀ 16.7mm
    Height (H) 17.4mm
    Length (L) 21.4mm
    Panel Thickness 0.8 - 1.5mm
    Width (W) 16.7mm
    for Hole ⌀ (FH) 7.0 mm
    for Panel Thickness min - max 0.8 - 1.5 mm
    Country of Origin CN
    GTIN-13 / EAN 4031026644394
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 31162305
