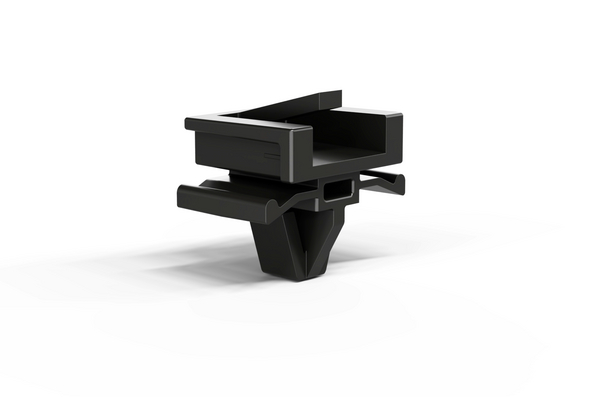

Connector clip, black, 1200Bag
Art.-No. 133-03301 | CCAH8X15PT2-PA66-BK |

Copied

    • Easy to install by simply pushing into place
    • Connection can be released (non-destructive)
    • One fit tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dust and dirt gaining access
    Add to watchlist
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Fixation Method arrowhead
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION CCAH8X15PT2-PA66-BK
    Package Content 1200Bag
    Package Content packed in carton
    Type CCAH8X15PT2
    UV-Stabilised No
    Fixing Hole Shape Oval
    Height (H) 23.2mm
    Length (L) 19.5mm
    Panel Thickness max. 0.8 - 2.0mm
    Width (W) 25.0mm
    for Hole ⌀ (FH) 8.0 - 15.0 mm
    for Panel Thickness min - max 0.8 - 2 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +85 °C
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026593159
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
