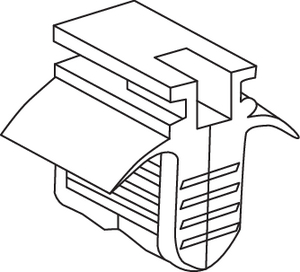

Connector clip for connector/for hole (oval), black, 500pcs.
Art.-No. 151-01358 | CCFT8X15-PA66HIRHS-BK |

Copied

    • Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
      Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
      A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
    Add to watchlist
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCFT8X15-PA66HIRHS-BK
    Package Content 500pcs.
    Package Content packed in bag
    Product Family With FirTree
    Product Group Connector Clips for Oval Holes
    Type CCFT8X15
    Weight/Unit 0.00011kg
    Height (H) 17.2mm
    Length (L) 17.2mm
    Panel Thickness max. 0.7-6.35mm
    for Hole ⌀ (FH) 8.0 x 15.0 mm
    for Panel Thickness min - max 0.7 - 6.4 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026519876
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.055kg
    Packaging 3 - Height (m) 0.22m
    Packaging 3 - Length (m) 0.57m
    Packaging 3 - Qty 7000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0489m³
    Packaging 3 - Weight (kg) 1.475kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.244m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 140000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.194m³
    Packaging 4 - Weight (kg) 50.5kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
