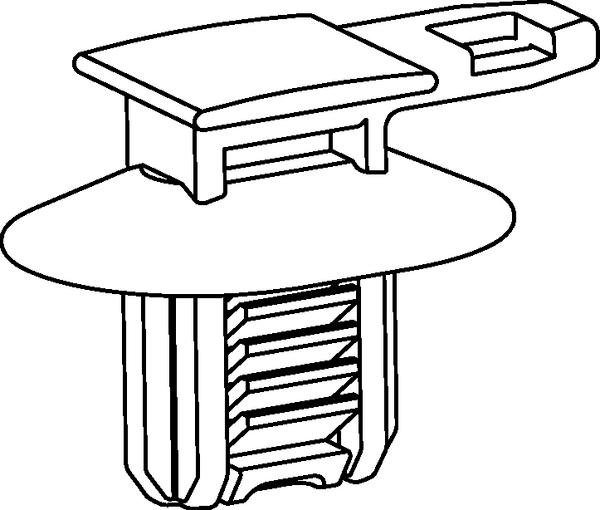

Connector clip for hole (oval), black, 3000pcs.
Art.-No. 151-02431 | CCDOP62x122-PA66HIRHS-BK |

Copied

    • Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
    • Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
    • A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
    Add to watchlist
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCDOP62x122-PA66HIRHS-BK
    Pack Cont. 3000pcs.
    Package Content packed in box
    Product Family With FirTree
    Product Group Connector Clips for Oval Holes
    Type CCDOP62x122
    Height (H) 17.65mm
    Length (L) 20.5mm
    Width (W) 10.3mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.7 - 5 mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C, (+125 °C, 500 h)
    Country of Origin FR
    GTIN-13 / EAN 4031026608907
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
