Connector clip for hole (oval), black, 1000pcs.
Art.-No. 151-04183 | CCOVAL6-PA66HIRHS(REC)-BK

Copied
  • Short low profile fir tree to avoid obstructions on opposite side of panel.
  • Oval hole fir tree prevents rotation and provides easy insertion with high extraction in 4 common automotive oval hole sizes.
  • Fir tree branch design on all four sides makes a 360 degree interface with the panel, creating a more secure fit into the hole.
  • Connector clip designed to meet USCAR EWCAP-005-11 clip slot specifications.
  • PA4/6 material allows for use in high-heat applications
Show more
Application Connector Clips are designed with various fixing point designs, to accommodate the many connectors out in the market. This specific connector clip is designed for a commonly used automotive connector. The width and the height of the fixation point creates minimal rattle when secured. The innovative design of the fir tree creates an interface with four different size holes that are common in the automotive industry. The fir tree branch design on all four sides makes a 360-degree interface with the panel, creating a more secure fit into the hole.
Colour Black (BK)
Material Polyamide 6.6 recycled, high impact modified, heat stabilised (PA66HIRHS(REC))
PART DESCRIPTION CCOVAL6-PA66HIRHS(REC)-BK
Pack Cont. 1000pcs.
Package Content packed in pcs.
Product Family With FirTree
Product Group Connector Clips for Oval Holes

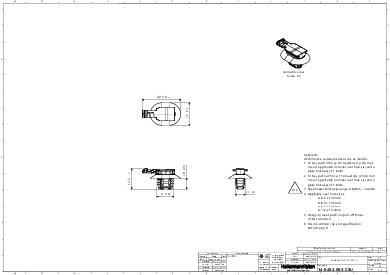

Type CCOVAL6
Height (H) 15.2mm
Length (L) 29.34mm
Panel Thickness max. 0.6 - 3.0mm
Width (W) 17.6mm
for Hole ⌀ (FH) 6.2 - 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max 0.6 - 3 mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
ROHS compliant Yes
Specifications
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>ReSource highlights HellermannTyton products that are made from reccled waste or from virgin materials with relatively lower carbon emissions. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
ReSource highlights HellermannTyton products that are made from reccled waste or from virgin materials with relatively lower carbon emissions.
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
Country of Origin US
GTIN-13 / EAN 4031026739298
Packaging 3 - Height (m) 0.1397m
Packaging 3 - Length (m) 0.51276m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0223
Packaging 3 - Width (m) 0.31115m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162305
