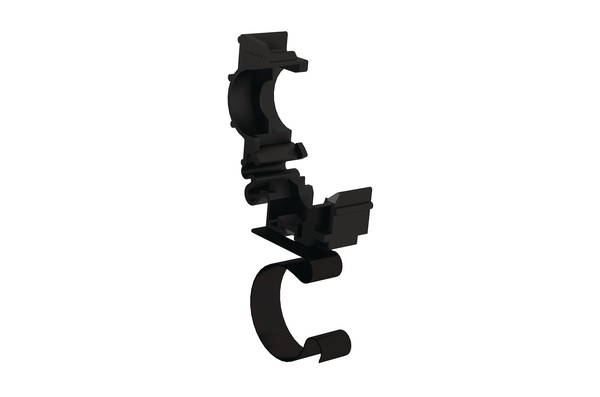

Corrugated tube clip with pipe/tube holder, black, 600pcs.

Art.-No. 133-03496

| CDC10BC25-PA66-BK

|

Living hinge allows placement and positioning of tubing before locking in place.

HellermannTyton has conduit clamps in multiple configurations to mount to a variety of surfaces.

This product is not available anymore.

Please contact our sales team.

Can be easily assembled to convoluted tubing and reliably remain in position.
Internal rib prevents movement or rattling.
Multiple configurations to mount to a variety of surfaces.
Releaseable to allow for maintenance.

Add to watchlist

Downloads

Base Data

Application	The Convoluted Tubing Clamp provides a quick method for securing and routing convoluted tubing. The clamp has an internal rib that prevents movement of the tubing and rattling. Living hinge allows placement and positioning of tubing before locking in place. Convoluted tubing clamps are available in various tubing diameters.
Colour	Black (BK)
Fixation Method	Bundling Clip
Key product features	for convoluted tubes or with rib
Material	Polyamide 6.6 (PA66)
PART DESCRIPTION	CDC10BC25-PA66-BK
Package Content	600pcs.
Package Content packed in	carton
Type	CDC10BC25
UV-Stabilised	No

Product Dimensions

⌀ (D2)	17.8mm
⌀ D	0.43"
⌀ D2	0.7"
Attach to ⌀	10
Bundle ⌀	25.0mm
Bundle ⌀ max.	25.0mm
Diameter (D)	11.0mm
Height (H)	79.4mm
Length (L)	52.8mm
Offset Length	6.3mm
Width (W)	22.5mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 V2
Halogen-free	No
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026595702
Packaging 3 - Height (m)	0.352424999999999m
Packaging 3 - Length (m)	0.5715m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0703m³
Packaging 3 - Width (m)	0.34925m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
