Fixing Elements for BHT-Ties, for Distance Routing : CGS1

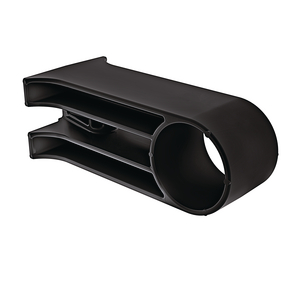

Fixing Element 56.6x30.5 mm, for distance tubing routing, high impact modified, heat and UV-stabilised, blackArticle number: 151-00006

Features

  • Tubes are fixed a defined distance from the substructure
  • Defined diameter for the wire entry
  • Retainer is fixed in the hole with BHT-tie

Certifications & Approvals

Application

This heavy duty fixing element can be used to guide tubes in a defined distance to the substructure.

Colour Black (BK)
Pack Cont. 250pcs.
Package Quantity per bag
PART DESCRIPTION CGS1-PA66HIRHSUV-BK
Product Family CGS1 for Convoluted Tubes
Product Group Fixing Elements for BHT-Ties, for Distance Routing
Short Description Fixing Element 56.6x30.5 mm, for distance tubing routing, high impact modified, heat and UV-stabilised, black
Variant Mounts
Bundle ∅ max. 25.8mm
for Hole ∅ (FH) 12.7 mm
Height (H) 30.5mm
Length (L) 56.6mm
Width (W) 25.4mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Operating Temperature - °C -40 °C to +105 °C
Prop65 Warning No
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
GTIN-13 / EAN 4031026312804
Packaging 1 - Qty 250
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 0.95kg
Packaging 3 - Height (m) 0.14m
Packaging 3 - Length (m) 0.513m
Packaging 3 - Qty 250
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0223
Packaging 3 - Weight (kg) 1.47kg
Packaging 3 - Width (m) 0.311m
Packaging 4 - Height (m) 11.25m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 7000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 10.8
Packaging 4 - Weight (kg) 62.16kg
Packaging 4 - Width (m) 0.8m
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
UNSPSC Key 39121717
