01/07/2026

Cable clip for hole (round)/for stud, Dmin=14.0mm, Dmax=17.0mm, ⌀M5


Art.-No. 151-03463

| CMP2W14-17-PA6HS/AEM-BK

 |

Copied

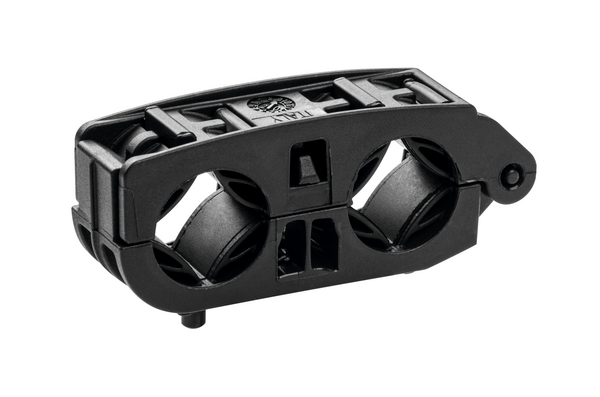

Double high voltage clip in PA6HS / AEM with anti-rotation pin.

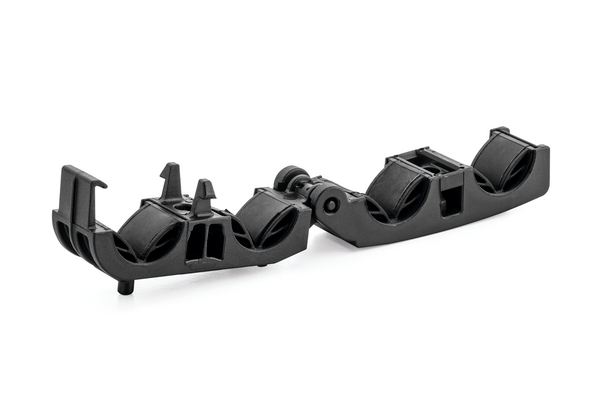

Double high voltage clip in PA6HS / AEM with anti-rotation pin (open).

    • Soft AEM inserts protect the wiring from crushing, abrasion and chemicals
    • Easy installation thanks to the special closure
    • In PA6HS for temperatures up to 90°C and PA46 for temperature up to 150°C
    • For fixing on 5.0 mm studs with anti-rotation pin
    • For 2 cables or parallel routing
    • The Twist-Lock closing system (20.0 - 24.0 mm) acts with the same force on both compartments and significantly increases the necessary reopening force by decreasing the closing force
    • Rotatable fastener = 20.0 -24.0 mm bundle diameter
    • Hinge lock = 14.0 -17.0 mm bundle diameter
    Add to watchlist
    Downloads
    Application These clips are designed for the installation of high voltage cables in the automotive sector or electric vehicles in general, but can be used for any application requiring parallel wiring.
    The sturdy clip fixes and guides cables and corrugated conduits in a stable and optimal way, keeping the wiring parallel even in the presence of strong vibrations. The HV-Clips are available as CLP, CMP and CHP parts. The "L" stands for lower performance (EPDM), the "M" for medium performance (heat resistant + AEM) and the "H" for high performance (PA46 + AEM). The HV clips can also be produced with other material combinations or are already available.
    Colour Black (BK)
    Key product features vibration absorbing, sealed, for multiple routing
    Material Polyamide 6, heat stabilised (PA6HS), Ethylene acrylate copolymer (AEM)
    PART DESCRIPTION CMP2W14-17-PA6HS/AEM-BK
    Package Content 250pcs.
    Package Content packed in box
    Product Family for multiparallel routing
    Product Group Fixing elements for tubes and harnesses
    Type CMP2W14-17
    Bundle ⌀ 14.0-17.0mm
    Bundle ⌀ max. 17.0mm
    Bundle ⌀ min. 14.0mm
    Height (H) 31.7mm
    Length (L) 75.1mm
    Stud ⌀ M5
    Width (W) 20.4mm
    Country of Origin IT
    GTIN-13 / EAN 4031026666075
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
