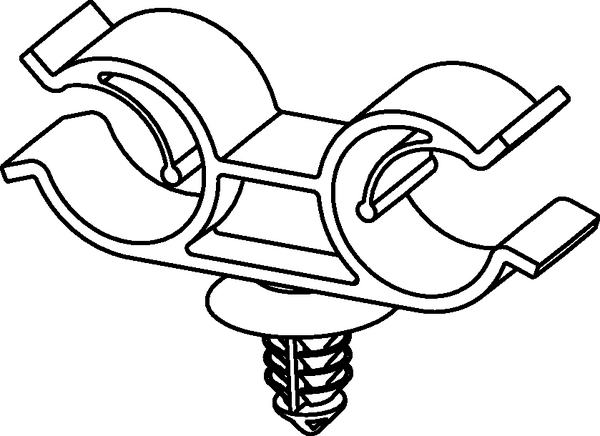

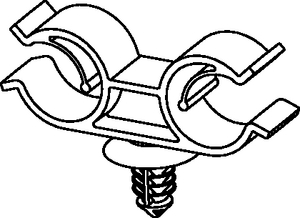

Cable clip for hole (round), T=0.6 - 6.0mm, ⌀6.5 mm, Dmin=15.5mm, Dmax=15.5mm

Art.-No. 151-01310

| DUALFT6DOCK-PA66HIRHSUV-BK

|

For parallel routing of tubes and pipes
Easy to install
Post installation of tubes and pipes possible
Defined offset between the bundles

Add to watchlist

Downloads

More products in this product group:

Fixing elements for tubes and harnesses

This product is part of:

SampleBox_Multiple_Routing

Base Data

Application	Designed for the fast and easy parallel routing of two tubes or pipes. Both can be installed by hand. The fixing element inside assures a firm grip even with smaller diameters.
Colour	Black (BK)
Fixation Method	Fir Tree
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	DUALFT6DOCK-PA66HIRHSUV-BK
Package Content	2000pcs.
Package Content packed in	pack
Product Family	for multiparallel routing
Product Group	Fixing elements for tubes and harnesses
Type	DUALFT6DOCK
UV-Stabilised	Yes
Weight/Unit	0.01kg

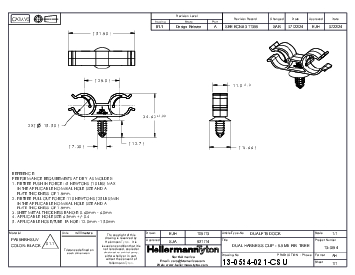

Product Dimensions

Attach to ⌀	15.5
Bundle ⌀	15.5-15.5mm
Bundle ⌀ max.	15.5mm
Bundle ⌀ min.	15.5mm
Height (H)	34.63mm
Hole Depth	0.6mm
Hole Depth	6.0mm
Length (L)	51.8mm
Nominal ⌀	15.5mm
Panel Thickness	0.6 - 6.0mm
Width (W)	16.66mm
for Hole ⌀ (FH)	6.5 mm
for Panel Thickness min - max	0.6 - 6 mm

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
Operating Temperature, 1000h	+160 °C
Operating Temperature, 5000h	+125 °C
Operating Temperature, 500h	+165 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging


Country of Origin	US
Customs Number	39269097
GTIN-13 / EAN	4031026510859
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.37465m
Packaging 3 - Length (m)	0.59055m
Packaging 3 - Qty	2000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0646m³
Packaging 3 - Weight (kg)	20.745kg
Packaging 3 - Width (m)	0.2921m
Packaging 4 - Height (m)	1.254m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	24000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.204m³
Packaging 4 - Weight (kg)	270.94kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
