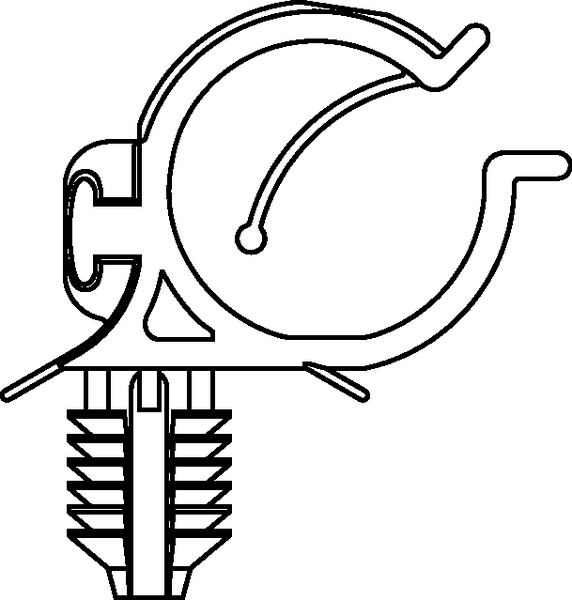

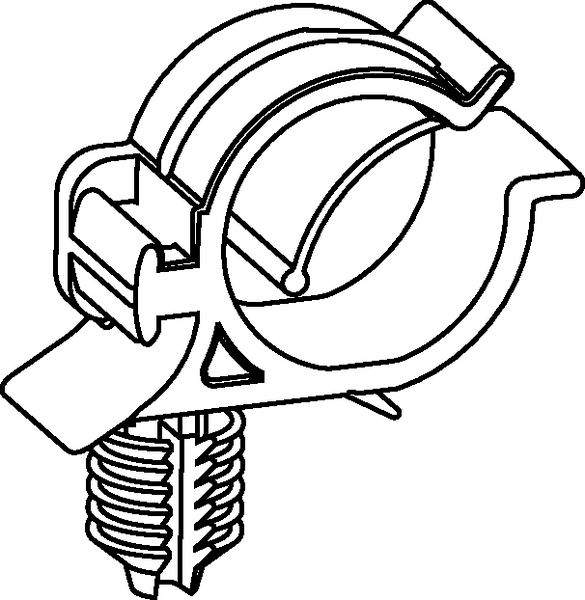

Corrugated tube clip for hole (round)/with pipe/tube holder, nom⌀8.0mm, black, 500pcs.
Art.-No. 151-01543 | CTC8FT6-PA66HIRHS-BK |

The tubing is clicked into the CTC clamp and is held firmly.

CTC clamps for a variety of nominal diameters
Fir tree foot part can be used for a variety of panel thicknesses
Suitable for use within threaded holes
Tube is guided accurately by clicking
Axial slipping is prevented by the inside profile of the clamp

Add to watchlist

Downloads

More products in this product group:

Fixing elements for corrugated tubing, with fir tree >

Base Data

Application	CTC clamps are used for example in the automotive, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.
Colour	Black (BK)
Fixation Method	Fir Tree
Key product features	for convoluted tubes or with rib, removable
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	CTC8FT6-PA66HIRHS-BK
Package Content	500pcs.
Package Content packed in	bag
Product Family	CTC-Series
Product Group	Fixing elements for corrugated tubing, with fir tree
Short Description	Convoluted Tubing Clip, round holes 6.1 - 6.9 mm/6.35 mm (hexagonal), fir tree, high impact modified, heat stabilised, black
Type	CTC8FT6

Product Dimensions

Attach to ⌀	NW8
Height (H)	14.2mm
Height (H2)	12.5mm
Length (L)	23.7mm
Nominal ⌀	8.0mm
Panel Thickness max.	0.6 - 4.5mm
Width (W)	6.0mm
for Hole ⌀ (FH)	6.1 - 6.9 mm, 6.35 mm (hexagonal)
for Panel Thickness min - max	0.6 - 4.5 mm

Downloads

Specifications

Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	CN
GTIN-13 / EAN	4031026547008

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	31162305

Similar products

CTC6C20.2-PP-BK 133-03486
Corrugated tube clip, black, 1500pcs.
- for convoluted tubes or with rib
- reusable
- removable
On my watchlist Add to watchlist

Please log in with your HellermannTyton account to use your personal watchlist.
Login / Register
CTC17SBS6-PA66HIRHS-BK 151-00010
Corrugated tube clip for stud, nom⌀17.0mm, black, 500pcs.
- for convoluted tubes or with rib
On my watchlist Add to watchlist

Please log in with your HellermannTyton account to use your personal watchlist.
Login / Register
CTC10FT6LG-PA66HIRHS-BK 151-00018
Corrugated tube clip for hole (round), nom⌀10.0mm, black, 500pcs.
- for convoluted tubes or with rib
- reusable
- removable
On my watchlist Add to watchlist

Please log in with your HellermannTyton account to use your personal watchlist.
Login / Register
CTC13FT6LG-PA66HIRHS-BK 151-00019
Corrugated tube clip for hole (round), nom⌀13.0mm, black, 500pcs.
- for convoluted tubes or with rib
- reusable
- removable
On my watchlist Add to watchlist

Please log in with your HellermannTyton account to use your personal watchlist.
Login / Register
CTCL16FT6LG-PA66HIRHSUV-BK 151-00621
Corrugated tube clip for hole (round), nom⌀16.0mm, black, 1500pcs.
- for convoluted tubes or with rib
- reusable
- removable
- lockable
On my watchlist Add to watchlist

Please log in with your HellermannTyton account to use your personal watchlist.
Login / Register
CTC4.5SBS6-PA66HIRHS-BK 151-00700
Corrugated tube clip for stud, nom⌀4.5mm, black, 500pcs.
- for convoluted tubes or with rib
On my watchlist Add to watchlist

Please log in with your HellermannTyton account to use your personal watchlist.
Login / Register
CTC7.5SBS6-PA66HIRHS-BK 151-00701
Corrugated tube clip for stud, nom⌀7.5mm, black, 500pcs.
- for convoluted tubes or with rib
On my watchlist Add to watchlist

Please log in with your HellermannTyton account to use your personal watchlist.
Login / Register
CTC10SBS6-PA66HIRHS-BK 151-00702
Corrugated tube clip for stud, nom⌀10.0mm, black, 500pcs.
- for convoluted tubes or with rib
On my watchlist Add to watchlist

Please log in with your HellermannTyton account to use your personal watchlist.
Login / Register
CTC13SBS6-PA66HIRHS-BK 151-00703
Corrugated tube clip for stud, nom⌀13.0mm, black, 500pcs.
- for convoluted tubes or with rib
On my watchlist Add to watchlist

Please log in with your HellermannTyton account to use your personal watchlist.
Login / Register

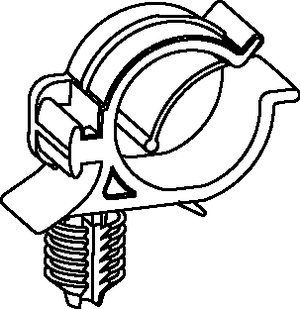

CTCFT6-PA66HIRHS-BK 151-00783
