09/08/2025

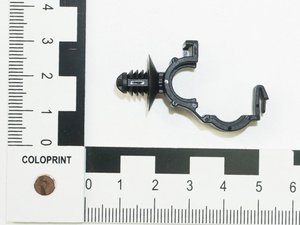

Corrugated tube clip for hole (round)/with pipe/tube holder, nom⌀8.5mm, grey, 1000pcs.
Art.-No. 151-02470 | CTCL8.5FT6LG-PA46-GY |

Copied
Fixing element for corrugated tubes and round holes.
CTC-Series

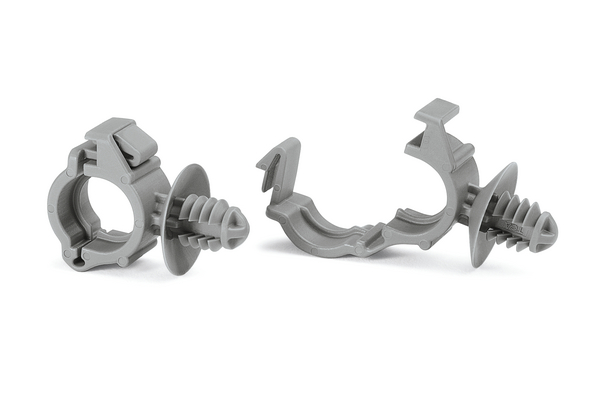

CTC convoluted tubing clip.

    • CTC clamps for a variety of nominal diameters
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Tube is guided accurately by clicking
    • Axial slipping is prevented by the inside profile of the clamp
    Add to watchlist
    Downloads
    Application CTC clamps are used for example in the automotive, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.
    Colour Grey (GY)
    Fixation Method Fir Tree
    Key product features for convoluted tubes or with rib, removable, lockable
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION CTCL8.5FT6LG-PA46-GY

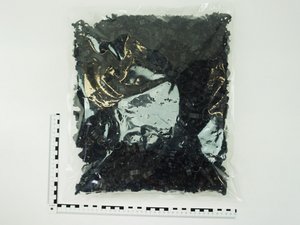

    Package Content 1000pcs.
    Package Content packed in bag
    Product Family CTC-Series
    Product Group Fixing elements for corrugated tubing, with fir tree
    Type CTCL8.5FT6LG
    Weight/Unit 0.001442kg
    Attach to ⌀ NW8.5
    Height (H) 28.4mm
    Height (H2) 9.4mm
    Nominal ⌀ 8.5mm
    Panel Thickness max. 0.75 - 3.0mm
    Width (W) 10.0mm
    for Hole ⌀ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.8 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026610153
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 1.471135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 6.84654kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.204m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.156m³
    Packaging 4 - Weight (kg) 157.92kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 31162305
