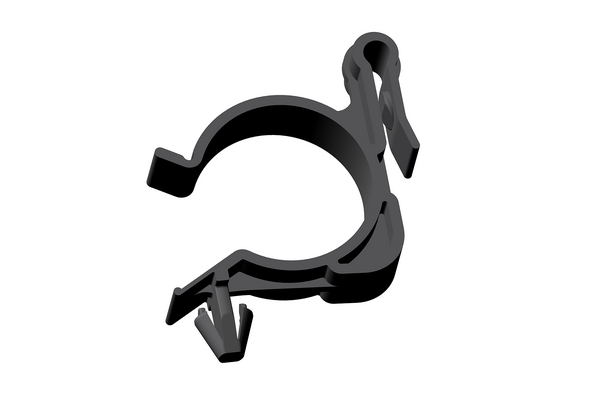

Cable clip for hole (round), ⌀7.8 - 8.2 mm
Art.-No. 151-00026 | CTCLPROFILE-PA66HIRHS-BK

These clips can be attached to the panel prior to installing the pipe or hose, simply push the pipe into the clip for a firm and secure fixing.

Add to watchlist

Downloads CAD-Download

More products in this product group:

Fixing Elements for Corrugated Tubing, with Arrowhead >

Base Data

Application	These clamps are used for example in the automotive industry, in the production of cable harnesses and in the electrical industry. Their quick and easy mounting is the reason for their universal success wherever corrugated tubing and pipes have to be fixed quickly and securely.
Color	Black (BK)
Key product features	for convoluted tubes or with rib, for multiple routing
PART DESCRIPTION	CTCLPROFILE-PA66HIRHS-BK
Packaging Type	pcs.
Part No.	151-00026
Product family	Omega Clips, Arrowhead
Product family	Products for wires and hoses, Products for convoluted tubes
Type	CTCLPROFILE

Product Dimensions

Fixation Method	Arrowhead
Height (metric)	59.5mm
Length (metric)	64.5mm
Max. Panel Thickness (metric)	2.7mm
Min. Panel Thickness (metric)	2.3mm
Mounting Hole Diameter (metric)	7.8 - 8.2 mm
Nominal Diameter (metric)	31.2mm
Width (metric)	12.0mm

Downloads

Material and Specifications

Flammability	UL 94 HB
Material	PA66HIRHS
Material	Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
REACH Conformity	Yes
ROHS compliant	Yes

Logistic and Packaging


Customs Number	3926909988
Packaging 1 - Weight (kg)	2.715kg
Pkg. Qty.	500Pieces
