Cable clip for edge/with pipe/tube holder, T=3.0 - 6.0mm, Dmin=11.8mm, Dmax=12.4mm, nom⌀=11.8 - 12.4 mm, nom⌀2=11.8 - 12.4 mm

Art.-No. 151-04199

| DLOC12EC3-6TP-PA66HIRHS-BK

|

Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.

Add to watchlist

Downloads

This product is part of:

SamplePack_Fluid_Routing_Management

Base Data

Cable ⌀ max	12.4mm
Cable ⌀ min	11.8mm
Colour	Black (BK)
Fixation Method	EdgeClip, top
Key product features	for multiple routing, for direct fixation, lockable, releasable, reusable
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	DLOC12EC3-6TP-PA66HIRHS-BK
Package Content	300pcs.
Package Content packed in	bag
Type	DLOC12EC3-6TP
Weight/Unit	0.00442kg

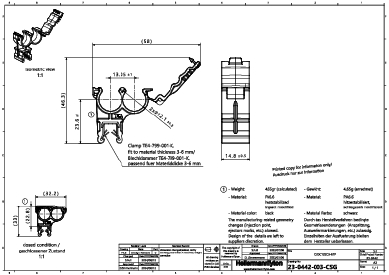

Product Dimensions

Attach to ⌀	11.8 - 12.4
Bundle ⌀	11.8-12.4mm
Bundle ⌀ max.	12.4mm
Bundle ⌀ min.	11.8mm
Bundle Diameter Nom. (ND)	11.8 - 12.4 mm
Bundle Diameter Nom. 2 (ND2)	11.8 - 12.4 mm
Height (H)	33.0mm
Length (L)	32.2mm
Panel Thickness	3.0 - 6.0mm
for Panel Thickness min - max	3 - 6 mm

Specifications

ELV compliant (Article 4 - 2)	Yes
Halogen-free	Yes
Hazardous Goods	No
ROHS compliant	Yes
Specifications
	Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.

Logistics and Packaging


Country of Origin	PL
Customs Number	39269097
GTIN-13 / EAN	4031026741178
Packaging 1 - Height (m)	0.105m
Packaging 1 - Length (m)	0.43m
Packaging 1 - Qty	300
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.01422225m³
Packaging 1 - Weight (kg)	1.347815kg
Packaging 1 - Width (m)	0.315m
Packaging 3 - Height (m)	0.204m
Packaging 3 - Length (m)	0.591m
Packaging 3 - Qty	1200
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.048m³
Packaging 3 - Weight (kg)	6.35726kg
Packaging 3 - Width (m)	0.398m
Packaging 4 - Height (m)	1.204m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	24000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.156m³
Packaging 4 - Weight (kg)	149.16kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
