Flat ribbon and round cable mounts : FKH30A

Flat Ribbon Cables Self Adhesive / Screw Fixing 35x25 mm blackArticle number: 151-15300

Features

  • One-piece fixing mount for flat ribbon and round cables
  • Increased mounting area ensures proper bonding
  • Quick and easy installation
  • Can be released and re-used easily
  • Cable is gently fastened due to soft wings

Certifications & Approvals

Application

FKH mounts are designed to retain flat ribbon and round cables commonly used in information technology applications, in entertainment electronics or for connecting sensors. As each installation scenario is individual, FKH mounts are available in different dimensions and can be supplied as self adhesive and/or screwable versions.

Colour Black (BK)
Fixation Method Pasting / Stick
Pack Cont. 100pcs.
Package Quantity per pcs.
PART DESCRIPTION FKH30A-PA66HIR-BK
Product Family FKH-Series, self-adhesive
Product Group Flat ribbon and round cable mounts
Short Description Flat Ribbon Cables Self Adhesive / Screw Fixing 35x25 mm black
Variant Mounting clip

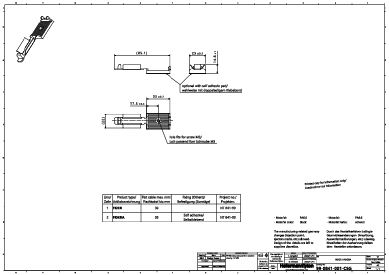

Attach to Ø 30.0mm
For Cable Width max. 30.0mm
for Hole ∅ (FH) 3.1 mm
Length (L) 35.0mm
Width (W) 25.0mm
Width (W2) 22.0mm
Adhesive Acrylate with base of polyurethane foam
Adhesive Operating Temperature to +105 °C
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB (excluding adhesive)
Hazardous good No
Material Polyamide 6.6, high impact modified (PA66HIR)
Operating Temperature - °C -40 °C to +80 °C
Specifications
UV-Resistant (Yes/No) No
GTIN-13 / EAN 4031026209043
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0117
Packaging 1 - Weight (kg) 0.508862kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 2000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 10.99724kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 24000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 153.0kg
Packaging 4 - Width (m) 0.8m
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
