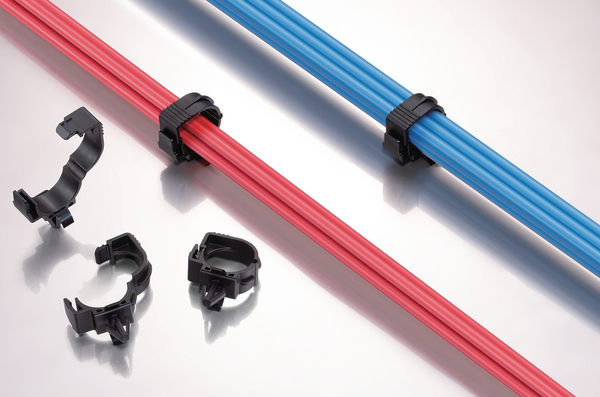

Cable clip for hole (round)/with pipe/tube holder, T=2.6mm, ⌀6.0 - 7.5 mm, Dmin=7.0mm, Dmax=21.0mm

Art.-No. 151-03506

| HC721PM7-PA11W-BK

|

Fixing Elements for Tubes and Harnesses and can be used outdoor including salt-damaged areas.

Add to watchlist

Downloads

More products in this product group:

Fixing Elements for Tubes and Harnesses

Base Data

Colour	Black (BK)
Key product features	lockable, rotatable
Material	Polyamide 11, UV-resistant (PA11W)
PART DESCRIPTION	HC721PM7-PA11W-BK
Package Content	100pcs.
Package Content packed in	bag
Product Family	Holder Clip
Product Group	Fixing Elements for Tubes and Harnesses
Type	HC721PM7
Typical Application	This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards.
UV-Stabilised	Yes

Product Dimensions

Bundle ⌀	7.0-21.0mm
Bundle ⌀ max.	21.0mm
Bundle ⌀ min.	7.0mm
Height (H)	30.8mm
Length (L)	55mm
Panel Thickness	2.6mm
Width (W)	22.4mm
for Hole ⌀ (FH)	6.0 - 7.5 mm
for Panel Thickness min - max	1 - 2.6 mm

Specifications

Flammability	UL 94 HB
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	JP
GTIN-13 / EAN	4944387123845

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
