Cable clip, T=7.0mm, ⌀11.0 mm
Art.-No. 151-02956 | HCD57PM11-PA66HSW-BK |

Copied

    Add to watchlist
    Downloads

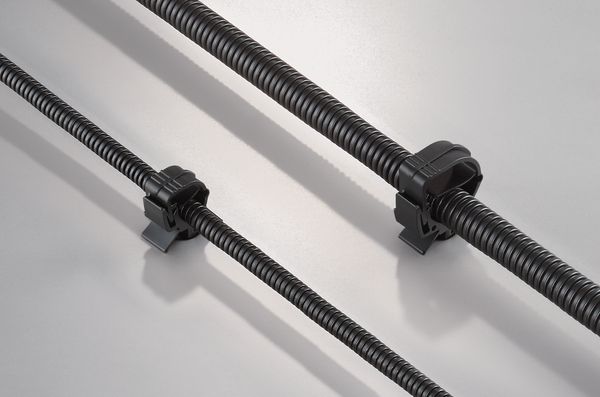

    Application This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards.
    Colour Black (BK)
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    PART DESCRIPTION HCD57PM11-PA66HSW-BK
    Package Content 100pcs.
    Package Content packed in bag
    Product Family Holder Clip
    Product Group Fixing Elements for corrugated tubes
    Type HCD57PM11
    Height (H) 21.1mm
    Length (L) 44.7mm
    Panel Thickness max. 7.0mm
    Width (W) 12.0mm
    for Hole ⌀ (FH) 11.0 mm
    for Panel Thickness min - max 3 - 7 mm
    Flammability UL 94 V2
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
    Country of Origin JP
    GTIN-13 / EAN 4944387119770
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
