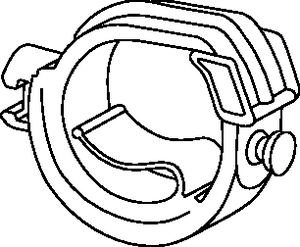

Cable clip with pipe/tube holder, Dmin=3.0mm, Dmax=13.0mm
Art.-No. 151-02883 | IAHC1T-PA66HIRHS-BK |

Copied
IAHC elements can be connected.
IAHC( )AH in combination with an IAHC( )T.
IAHC( )T

    • Push and click closure
    • Coupling elements of the IAHC variants allow parts to connect
    • Clip is clicked into a specific hole
    • IAHC( )T can only be connected with another IAHC element
    Add to watchlist
    Downloads
    Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
    Colour Black (BK)
    Key product features for faster processing, for multiple routing, vibration absorbing, removable, releasable, rotatable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION IAHC1T-PA66HIRHS-BK
    Package Content 1300pcs.
    Package Content packed in carton
    Product Family IAHC-Series
    Product Group Fixing elements for tubes and harnesses with automatic locking feature, connectable
    Short Description Bundling clip 30x10 mm, bundle diameter 3-13 mm, automatic locking, heat stabilised, high impact modified, black
    Type IAHC1T
    Weight/Unit 0.002791kg
    Bundle ⌀ 3.0-13.0mm
    Bundle ⌀ max. 13.0mm
    Bundle ⌀ min. 3.0mm

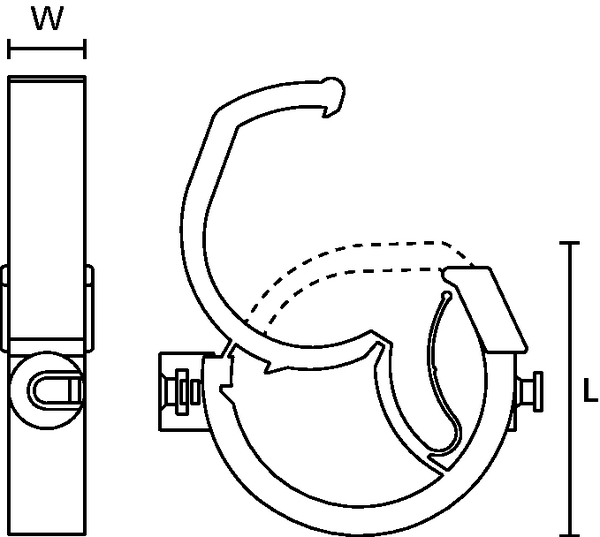

    Length (L) 23.0mm
    Width (W) 10.0mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026621296
    Packaging 1 - Qty 1300
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 3.628301kg
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.4m
    Packaging 3 - Qty 1300
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.024m³
    Packaging 3 - Weight (kg) 4.048301kg
    Packaging 3 - Width (m) 0.3m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 52000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 182.932kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
