Cable clip, T=0.6 - 9.0mm, ⌀6.5 mm, Dmin=6.10mm, Dmax=13.72mm
Art.-No. 156-02706 | IRCAFT6.5LG-PA66HIRHSUV-BK |

Copied
High-performing round fir trees mean no additional fastener is needed for mounting.
In-Line Ratchet P-Clamp
IRCAFT6.5LG

    • One-piece ratchet closure allows for easy installation during pre- or final assembly
    • Easy release feature simplifies quick adjustments and maintenance
    • Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out
    • High-performing round fir trees mean no additional fastener is needed for mounting
    Package size
    Add to watchlist
    Downloads
    Application The Inline Ratchet Clamp family is a perfect fit when facing space constraints or where offset mounting options are not ideal. Easily twists onto existing threaded rods, eliminating the need for additional hardware. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This allows the clamp to be reused without removing or replacing any bolts or screws.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 445N
    PART DESCRIPTION IRCAFT6.5LG-PA66HIRHSUV-BK
    Package Content 25pcs.
    Package Content packed in pack
    Product Family In-Line Ratchet P-Clamp, A-Series
    Product Group Fixing elements with fir tree for round holes
    Type IRCAFT6.5LG
    UV-Stabilised Yes
    Bundle ⌀ 6.10-13.72mm
    Bundle ⌀ max. 13.72mm
    Bundle ⌀ min. 6.10mm
    Length (L) 34.8mm
    Panel Thickness max. 0.6 - 9.0mm

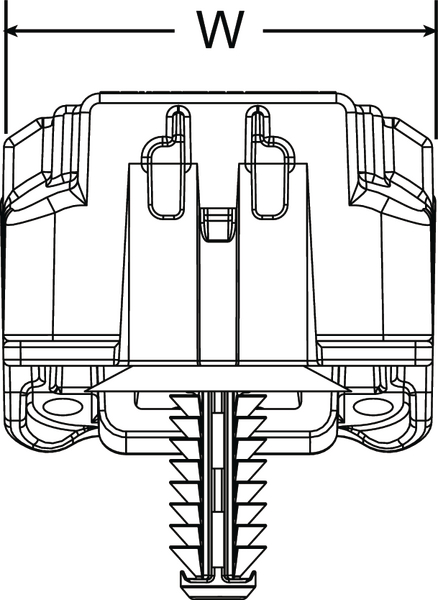

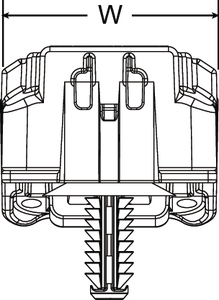

    Width (W) 34.9mm
    for Hole ⌀ (FH) 6.5 mm
    for Panel Thickness min - max 0.6 - 9 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>ReSource highlights HellermannTyton products that are made from recycled waste or from virgin materials with relatively lower carbon emissions. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    ReSource highlights HellermannTyton products that are made from recycled waste or from virgin materials with relatively lower carbon emissions.
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UL-File Number E64139
    Country of Origin MX
    GTIN-13 / EAN 4031026646718
    Packaging 1 - Qty 25
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20479m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Width (m) 0.314325m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
