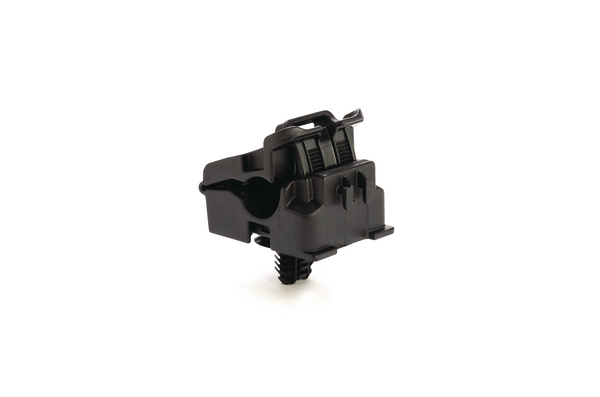

Cable clip, T=0.6 - 6.75mm, ⌀7.0 x 12.0 mm, Dmin=6.10mm, Dmax=13.72mm
Art.-No. 156-02710 | IRCAFTOVAL-PA66HIRHSUV-BK |

Copied
High-performing oval fir trees ensure anti-twist protection.
In-Line Ratchet P-Clamp

    • Building on the Ratchet P-Clamp family, the Center Mount Ratchet Clamp (CMRC) family offers fast and versatile installation of lines, hoses and cables
    • Designed for applications where space is limited or when a staggered mounting option is not ideal
    • Depending on the variant, the CMRC can be screwed on with an M6/M8/M10 screw or attached to an M8 threaded bolt
    • The variants for bolt attachment enable time-saving installation with a reliable hold
    Package size
    Add to watchlist
    Downloads
    Application The Inline Ratchet Clamp family is a perfect fit when facing space constraints or where offset mounting options are not ideal. Easily twists onto existing threaded rods, eliminating the need for additional hardware. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This allows the clamp to be reused without removing or replacing any bolts or screws.
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 445N
    PART DESCRIPTION IRCAFTOVAL-PA66HIRHSUV-BK
    Package Content 25pcs.
    Package Content packed in pack
    Product Family In-Line Ratchet P-Clamp, A-Series
    Product Group Fixing elements with fir tree for oval holes
    Type IRCAFTOVAL
    UV-Stabilised Yes
    Bundle ⌀ 6.10-13.72mm
    Bundle ⌀ max. 13.72mm
    Bundle ⌀ min. 6.10mm
    Fixing Hole Shape Oval
    Length (L) 34.8mm
    Panel Thickness max. 0.6 - 6.75mm
    Width (W) 34.9mm
    for Hole ⌀ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UL-File Number E64139
    Country of Origin MX
    GTIN-13 / EAN 4031026646671
    Packaging 1 - Qty 25
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20479m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Width (m) 0.314325m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
