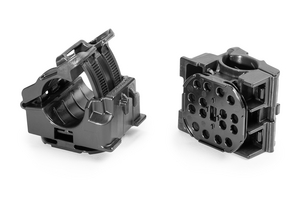

Cable clip for adhesive use/with pipe/tube holder, Dmin=12.70mm, Dmax=19.56mm
Art.-No. 156-02634
| IRCBMB5A-PA66HIRHSUV-BK
Copied
- One-piece ratchet closure allows for easy installation during pre- or final assembly.
- Easy release feature simplifies quick adjustments and maintenance.
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
- 3M™ VHB™ adhesive on base creates an incredible bond with mounting surface.
More products in this product group:
| Application | The In-line Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The adjustable clamp can be closed by hand to the desired diameter. The release feature allows easy and nondestructive removal of cables simply by using a flat-head screwdriver. In this way, the clamp can be reused or serviced without removing it from the mounting surface. |
| Brand Family | Ratchet Clamps |
| Color | Black (BK) |
| Description | The Adhesive Mount Ratchet Clamp offers versatility when managing wires, cables and hoses. Ultra-strong adhesive base attaches where holes don't exist or are undesirable, so no additional hardware is needed for securing to a or panel. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The adjustable clamp can be closed by hand to the desired diameter. The release feature allows easy and nondestructive removal of cables simply by using a flat-head screwdriver. In this way, the clamp can be reused or serviced without removing it from the mounting surface. |
| Key product features | removable, reusable, vibration absorbing, for multiple routing |
| Min. Tensile Strength (imperial) | 100lbs |
| Min. Tensile Strength (metric) | 445N |
| PART DESCRIPTION | IRCBMB5A-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 156-02634 |
| Product family | Adhesive Mount |
| Product family | Products for wires and hoses |
| Short Desc. | Adhesive Mount Ratchet Clamp, 0.50 - 0.77" Bundle Dia, MB5A, PA66HIRHSUV, Black, 250/ctn |
| Type | IRCBMB5A |
| UV Resistant | Yes |
Download
| Adhesive | Acrylic |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
IRCAMB5A-PA66HIRHSUV-BK
156-02624
IRCCMB5A-PA66HIRHSUV-BK
156-02644
IRCDMB5A-PA66HIRHSUV-BK
156-02654
IRCBMB5A-PA66HIRHSUV-BK
156-02723
