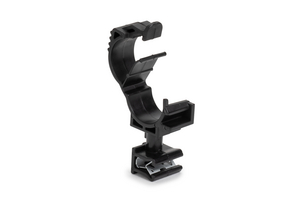

Solar Locking Clamps
Art.-No. 151-03903 | LOC10-14XECMOCF90-PA66HIRHSUV/PA66HIRHSUVR5-BK |

Copied
Secure and tool-free installation for solar panel and racking edges - the solar locking clamp with edge clip ensures reliable bundling with easy maintenance access.

    • Robust locking mechanism keeps the bundle secure, but can be opened by hand for maintenance
    • Edge clip allows for easy installation without tools
    • For solar applications, including panel frames and racking edges
    Package size
    Add to watchlist
    Downloads
    Application The solar locking clamp with edge clip combines two of our most successful products - the edge clip and the solar locking clamp - into one, offering a universal design that fits a variety of edges without the need for cable ties. Specifically fabricated for solar applications, the solar locking clamp can attach to a wide range of solar panel and racking edges. Its locking mechanism dynamically accommodates various bundle sizes. Manufactured from impact-modified polyamide 6.6, the clamp offers enhanced flexibility, heat resistance, and UV stabilisation, ensuring years of dependable performance. It is easy to install and operate single-handedly, with no tools required saving both time and labour.
    Colour Black (BK)
    Fixation Method Edge Clip
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Polyamide 6.6, high impact modified, heat and UV-stabilised, proprietary blend (PA66HIRHSUVR5)
    PART DESCRIPTION LOC10-14XECMOCF90-PA66HIRHSUV/PA66HIRHSUVR5-BK
    Package Content 100pcs.
    Package Content packed in pack
    Product Family LOC clamps with edge clip
    Product Group Solar Locking Clamps
    Type LOC10-14XECMOCF90
    UV-Stabilised Yes
    Bundle ⌀ 10.0-14.0mm
    Bundle ⌀ max. 14.0mm
    Bundle ⌀ min. 10.0mm

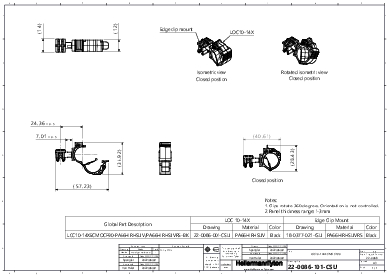

    Bundle Diameter Nom. (ND) 10.0 - 14.0 mm
    Depth (D) 14.0mm
    Height (H) 57.23mm
    Height (H2) 40.61mm
    Length (L) 28.43mm
    Panel Thickness max. 1.0 - 3.0mm
    Width (W) 12.0mm
    for Panel Thickness min - max 1 - 3 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026708980
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20479m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Qty 1000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Weight (kg) 5.08kg
    Packaging 3 - Width (m) 0.314325m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
