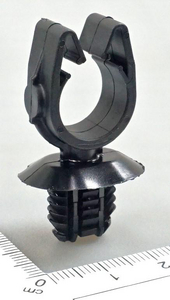

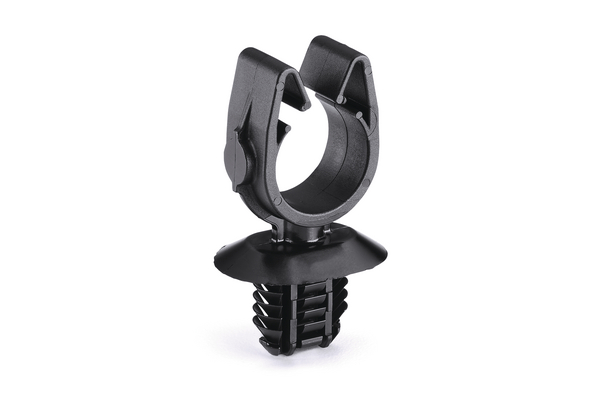

Cable clip for hole (oval)/with pipe/tube holder, T=0.6 - 6.75mm, ⌀6.2 x 12.2 mm/6.5 x 12.5 mm, Dmin=13.5mm, Dmax=15.8mm, nom⌀=14.0 mm
Art.-No. 151-01769 | MOC14FTOVAL-PA66HIRHSUV-BK

Copied

    • Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
    • Controlled flex and angled entry promote easy installation.
    • Non-rotating fir tree demonstrates easy insertion with high extraction resistance.
    Add to watchlist
    Downloads
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Brand Family MOC-Series
    Color Black (BK)

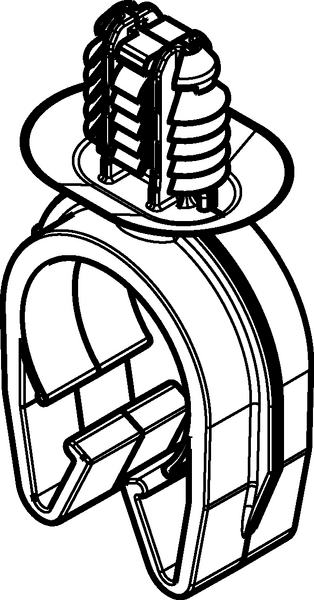

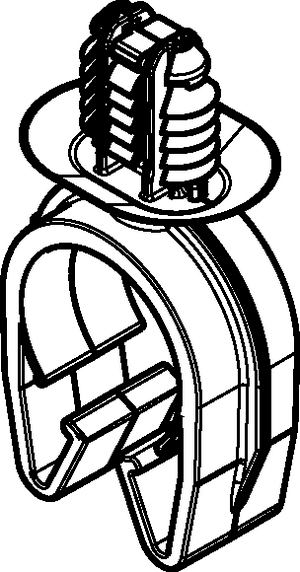

    Description The MOC with Oval Fir Tree features HellermannTyton's unique retention clip attached to a 4x oval fir tree that will not rotate in the mounting hole. The mount delivers a low insertion force while exhibiting high extraction resistance for a secure mounting point against a panel. This one design exceeds automotive requirements for the four most common oval sizes: 6.2x12.2 mm, 6.5x12.5 mm, 6.5x13 mm and 7x12 mm.
    Key product features removable
    PART DESCRIPTION MOC14FTOVAL-PA66HIRHSUV-BK

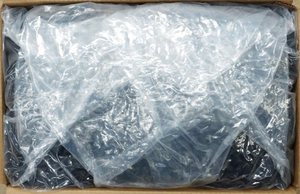

    Packaging Type pack
    Part No. 151-01769
    Product family MOC Clips with Fir Tree
    Product family Products for wires and hoses
    Short Desc. MOC Clip, 14 mm, with 4 x Oval Fir Tree, PA66HIRHSUV, Black, 3000/ctn
    Type MOC14FTOVAL
    UV Resistant Yes
    Depth (imperial) 0.39"
    Depth (metric) 10.0mm
    Fixation Method Fir Tree
    Height (imperial) 1.61"
    Height (metric) 40.9mm
    Length (imperial) 0.93"
    Length (metric) 23.6mm
    Max. Bundle Diameter (imperial) 0.62"
    Max. Bundle Diameter (metric) 15.8mm
    Max. Hole Depth (imperial) 0.27"
    Max. Hole Depth (metric) 6.75mm
    Max. Panel Thickness (imperial) 0.27"
    Max. Panel Thickness (metric) 6.75mm
    Min. Bundle Diameter (imperial) 0.53"
    Min. Bundle Diameter (metric) 13.5mm
    Min. Hole Depth (imperial) 0.02"
    Min. Hole Depth (metric) 0.6mm
    Min. Panel Thickness (imperial) 0.02"
    Min. Panel Thickness (metric) 0.6mm
    Mounting Hole Diameter (imperial) 0.24 x 0.48 ", 0.26 x 0.49 ", 0.26 x 0.51 ", 0.28 x 0.47 ", 0.27" x 0.47 "
    Mounting Hole Diameter (metric) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    Mounting Hole Shape Oval
    Nominal Bundle Diameter (imperial) 0.55"
    Nominal Bundle Diameter (metric) 14.0 mm
    Panel Thickness (imperial) 0.02 - 0.27"
    Panel Thickness (metric) 0.6 - 6.75mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen Free Yes
    Material PA66HIRHSUV
    Material Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
    Operating Temperature -40°F to +221°F (-40°C to +105°C)
    Operating Temperature, 1000h +320°F (+160°C)
    Operating Temperature, 5000h +257°F (+125°C)
    Operating Temperature, 500h +329°F (+165°C)
    Prop65 Warning No
    REACH Conformity Yes
    ROHS compliant Yes
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Customs Number (Schedule B) 3926909988
    Harmonized Tariff Schedule Code 3926.90.9989
    Packaging 1 - Weight (kg) 6.704kg
    Pkg. Qty. 3000
    Pkg. Qty. 3000
