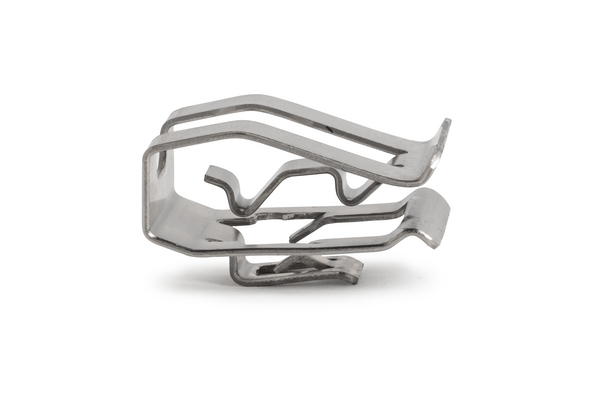

Metal cable clip for edge, T=1.0 - 3.0mm, metal, 100pcs.
Art.-No. 151-04064 | MSC2RB-SS304-ML |

Copied

    Package size
    Add to watchlist
    Downloads
    Cable ⌀ max 7.6mm
    Cable ⌀ min 5.0mm
    Colour Metal (ML)
    Material Stainless Steel (SS304)
    PART DESCRIPTION MSC2RB-SS304-ML
    Package Content 100pcs.
    Package Content packed in pack
    Product Family For solar panels
    Product Group Fixing elements for edges
    Type MSC2RB
    UV-Stabilised Yes
    Height (H) 14.4mm

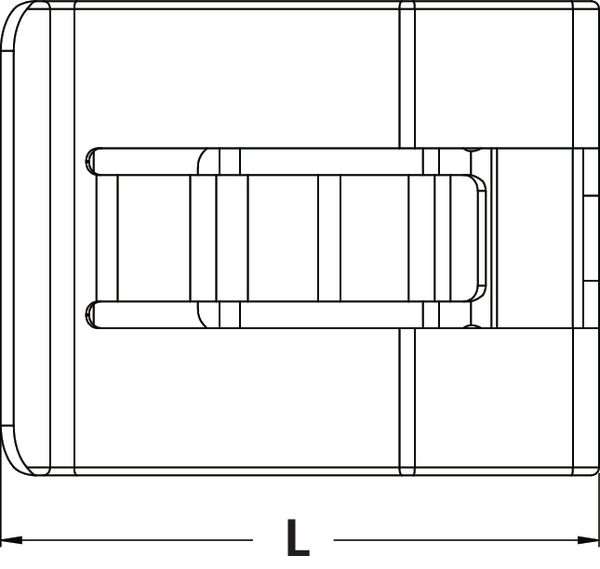

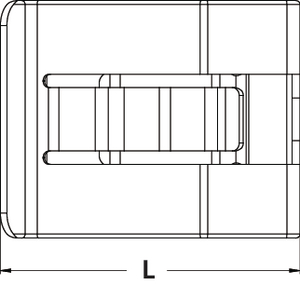

    Length (L) 24.1mm
    Panel Thickness max. 1.0 - 3.0mm

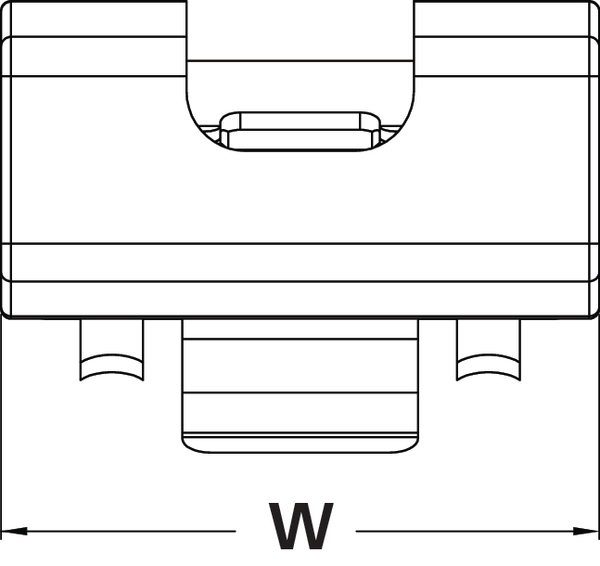

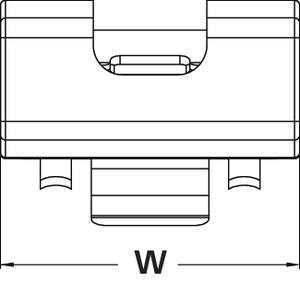

    Width (W) 19.1mm
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Operating Temperature -80 °C to +538 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026732718
    Packaging 1 - Qty 100
    Packaging 1 - Type pack
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
