25/10/2025

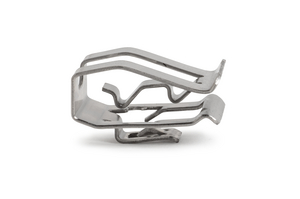

Metal cable clip for edge, ⌀4.1-7.39mm, T=0.76 - 1.24mm, metal, 5000pcs.
Art.-No. 151-02570 | MSC901-SS304-ML |

Copied
90-degree metal edge clip
MSC90

    Package size
    Add to watchlist
    Downloads
    Cable ⌀ max 7.39mm
    Cable ⌀ min 4.1mm
    Colour Metal (ML)
    Material Stainless Steel (SS304)
    PART DESCRIPTION MSC901-SS304-ML
    Package Content 5000pcs.
    Package Content packed in pack
    Product Family For solar panels
    Product Group Fixing elements for edges
    Type MSC901
    UV-Stabilised Yes
    Weight/Unit 0.0028kg
    Attach to ⌀ 4.1 - 7.39
    Bundle ⌀ 4.1-7.39mm
    Bundle ⌀ max. 7.39mm
    Bundle ⌀ min. 4.1mm
    Depth (D) 14.224mm
    Depth D2 (metric) 10.414mm
    Length (L) 18.44mm
    Panel Thickness max. 0.76 - 1.24mm
    Width (W) 11.57mm
    for Panel Thickness min - max 0.8 - 1.2 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -80 °C to +538 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US) Yes
    UL Recognized (US and Canada) Yes
    UL Recognized (US) Yes
    UL-File Number E64139
    Country of Origin US
    Customs Number 73269098
    GTIN-13 / EAN 4031026625621
    Packaging 1 - Qty 5000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 14.000001kg
    Packaging 3 - Height (m) 0.216m
    Packaging 3 - Length (m) 0.3048m
    Packaging 3 - Qty 5000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0176m³
    Packaging 3 - Weight (kg) 14.5kg
    Packaging 3 - Width (m) 0.267m
    Packaging 4 - Height (m) 10.09m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 160000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 9.686m³
    Packaging 4 - Weight (kg) 485.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
