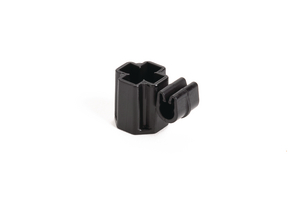

Cable clip for stud, T=M6mm, ØM6, ØM6, black, 2000pcs.
Art.-No. 133-03179 | PC5SM6-PA66HIRHSUV-BK |  Details

Fixing clip PC5SM6 for weld studs with additional pipe clip.

    • Stud fixing and retainer coming as one-piece part
    • Easy to install manually: just push onto stud and click bundle into retainer
    • Allows for post installation of cables
    • In case of maintenance replacement of bundle possible
    Package size
    Add to watchlist
    Downloads
    Application Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.).
    Colour Black (BK)
    Fixation Method Stud Mount
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Pack Cont. 2000pcs.
    Package Content packed in carton

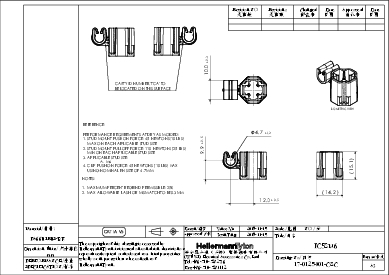

    PART DESCRIPTION PC5SM6-PA66HIRHSUV-BK
    Product Family for cable routing alongside the stud
    Product Group Fixing elements for weld studs, cloverleaf design
    for Hole ∅ (FH) M6
    Height (H) 15.1mm
    Length (L) 10.0mm
    Nominal ∅ 4.7mm
    Panel Thickness max. M6mm
    Stud ∅ M6
    Width (W) 14.73mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026588780
    Packaging 3 - Type box
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
