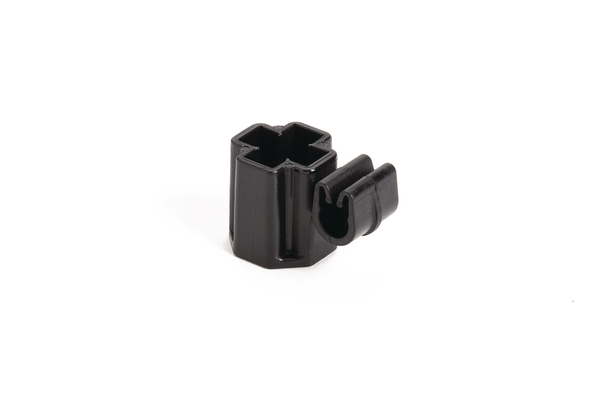

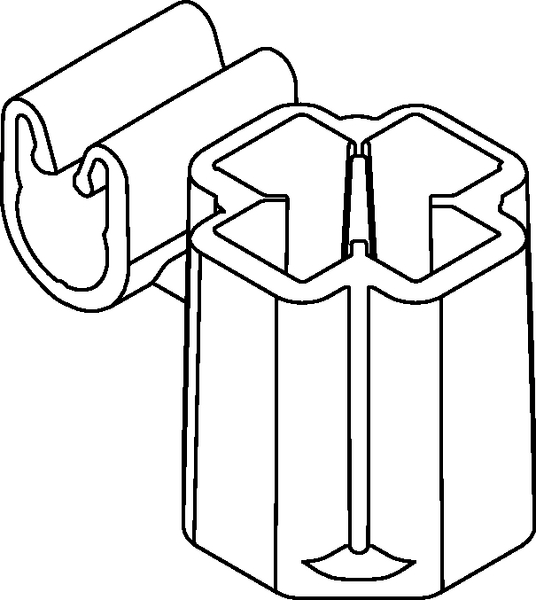

Cable clip for stud
Art.-No. 151-03360 | PC5SM6-PA66HIRHSUV-BK

Copied
Pipe clip secures routing to panel using a stud mount suited for a 5 or 6mm stud or bolt.
Fixing clip PC5SM6 for weld studs with additional pipe clip.

    • Pipe clip secures routing to panel using a stud mount suited for a 5 or 6mm stud or bolt.
    • Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.
    • Inverted retaining legs and narrow opening prevent inadvertent disengagement.
    • Controlled flex and angled entry promote easy installation.
    Package size
    Add to watchlist
    Application Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.).
    Color Black (BK)

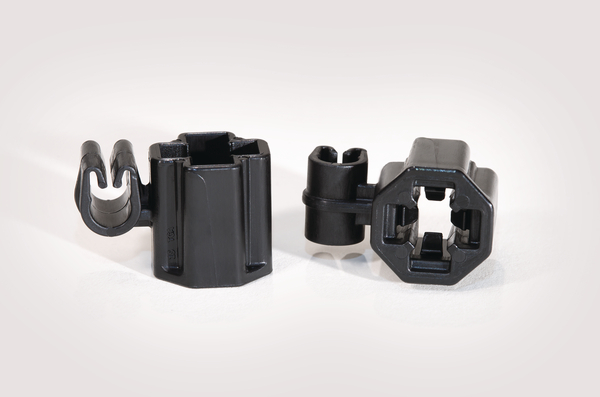

    Description These clips can be attached to the stud prior to installing the pipe or hose. The parts prefixed with an 'I' can be interlocked together giving a greater choice of installation options or mounted onto a 5 mm 'T' stud or the IAHC type of Automatic Harness Clips.
    PART DESCRIPTION PC5SM6-PA66HIRHSUV-BK
    Packaging Type bag
    Part No. 151-03360
    Product family Products for wires and hoses, Products to use on studs
    Type PC5SM6
    UV Resistant Yes

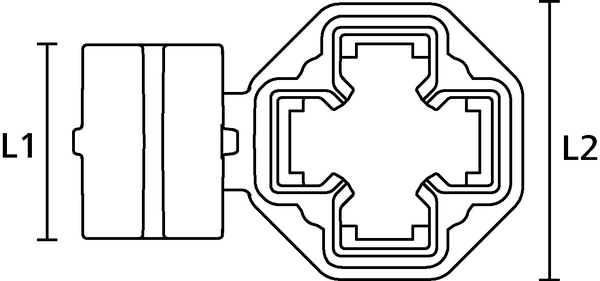

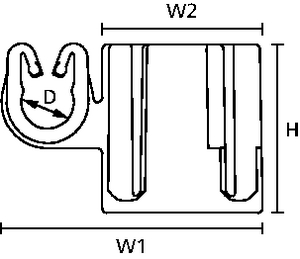

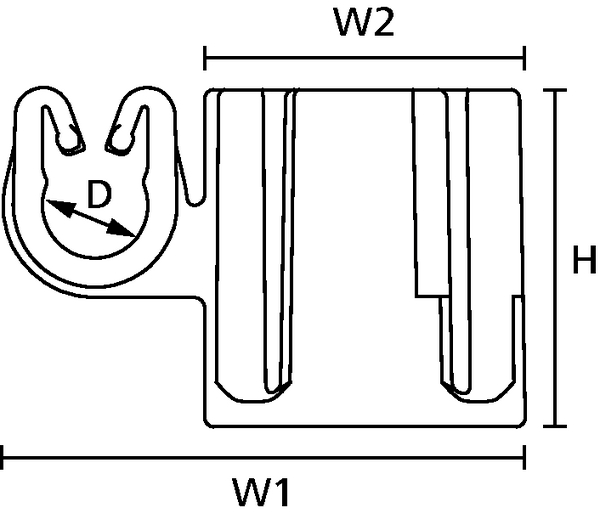

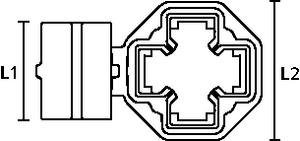

    Height (metric) 15mm
    Length (metric) 20mm
    Width (metric) 15mm
    Material PA66HIRHSUV
    Material Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
    Pkg. Qty. 500Pieces
